KBZ series submersible abrasive-resistance slurry pump
KBZ series submersible slurry pump with Introduction:
INSTALLATIONS AND USE
- For pumping sewage, waste water(non-aggressive) in industrial and residential installations and drainage applications
- For construction, aggregate and mining applications
PERFORMANCE RANGE
- Flow rate up to 156m³/h
- Head up to 56m
FEATURES
- The side-flow, top-discharge keeps the motor cooling even the pump runs continuously
- High chrome iron Semi-open impeller enables the pump to maintain its original performance
OPERATING CONDITIONS
- Liquid temperature up to +35℃
- Ambient temperature up to +40℃
- Max. Immersion depth 25m
- Continuous duty
ELECTRIC MOTOR
- Two-pole induction motor, 50Hz (n = 2850rpm)
- Three phase 380V-415V
- Equipped with built-in-thermal protector
- Insulation class F
- Protection IP68
OPTIONS AVAILABLE ON REQUEST
- Special mechanical seal
- Other voltages or 60Hz frequency
- Longer or shorter cable

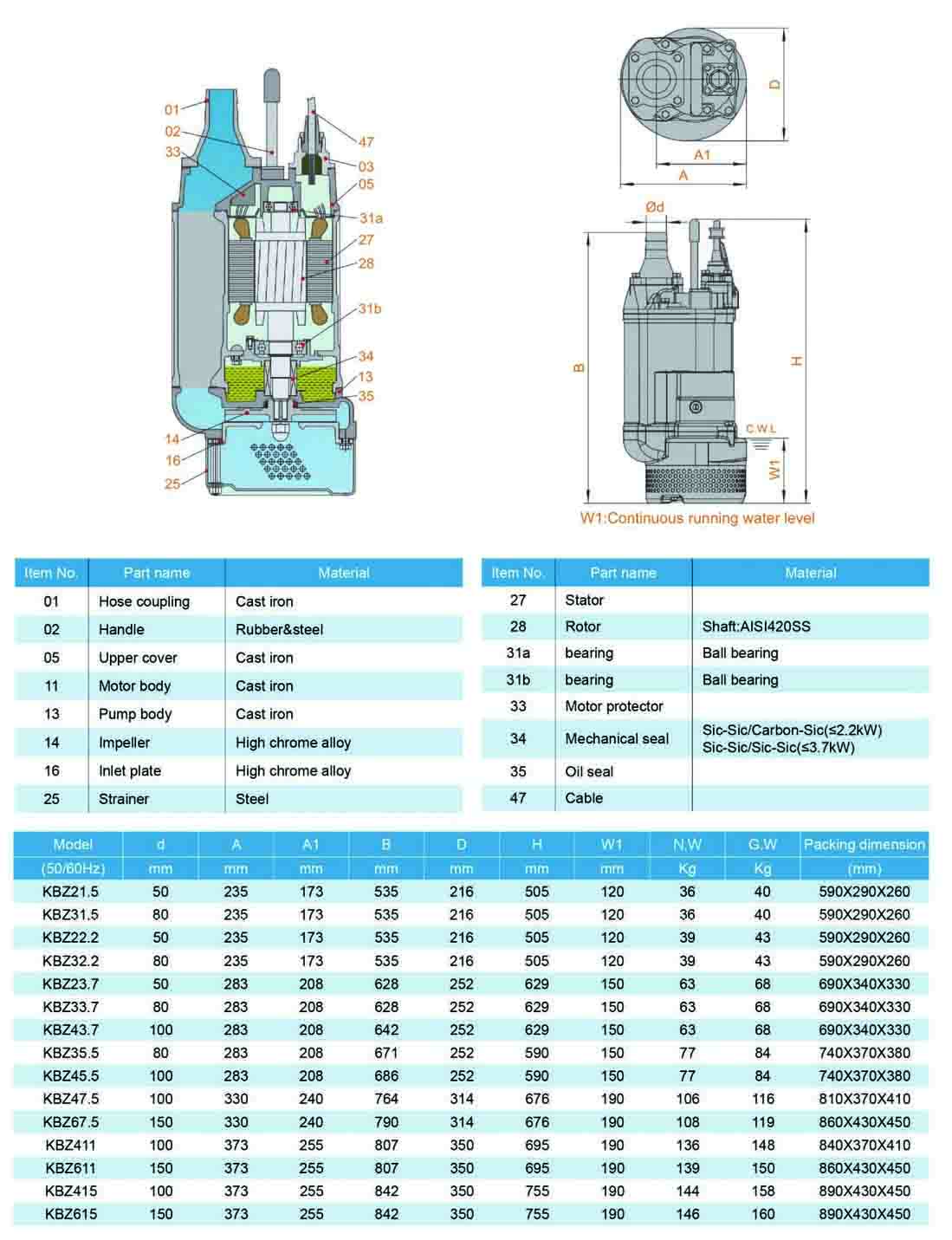

KBZ Slurry Pump drawing
| Model | Power (kW) | Power (HP) | Speed (rpm) | Outlet (mm) | Max.flow (m³/h) | Max.head (m) | Max.grain size (mm) |
| KBZ(B)21.5 | 1.5 | 2 | 2850 | 50 | 27 | 22 | 8.5 |
| KBZ(B)31.5 | 1.5 | 2 | 2850 | 80 | 40 | 14.5 | 8.5 |
| KBZ(B)22.2 | 2.2 | 3 | 2850 | 50 | 33 | 26 | 8.5 |
| KBZ(B)32.2 | 2.2 | 3 | 2850 | 80 | 55 | 19 | 8.5 |
| KBZ(B)E23.7 | 3.7 | 5 | 2850 | 50 | 33 | 34 | 8.5 |
| KBZ(B)33.7 | 3.7 | 5 | 2850 | 80 | 55 | 29 | 8.5 |
| KBZ(B)E43.7 | 3.7 | 5 | 2850 | 100 | 90 | 18.5 | 8.5 |
| KBZ(B)E35.5 | 5.5 | 7.5 | 2850 | 80 | 75 | 34 | 8.5 |
| KBZ(B)E45.5 | 5.5 | 7.5 | 2850 | 100 | 105 | 23 | 8.5 |
| KBZ47.5 | 7.5 | 10 | 2850 | 100 | 84 | 40 | 11.5 |
| KBZ67.5 | 7.5 | 10 | 2850 | 150 | 125 | 31 | 19.5 |
| KBZ411 | 11 | 15 | 2850 | 100 | 86.5 | 48.5 | 11.5 |
| KBZ611 | 11 | 15 | 2850 | 150 | 147 | 32 | 19.5 |
| KBZ415 | 15 | 20 | 2850 | 100 | 84 | 56 | 11.5 |
| KBZ615 | 15 | 20 | 2850 | 150 | 156 | 40 | 19.5 |
More size about submersible slurry pump, please contact us. Our technical people will choose the right pump for you.
If you need other types pump, please tell us your detail requirements, our technical people will choose the right pump for you.
Email: rita@ruitepump.com
Whatsapp/Wechat: +8619933139867
TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:
| Material Code | Material Description | Application Components |
| A05 | 23%-30% Cr White Iron | Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert |
| A07 | 14%-18% Cr White Iron | Impeller, liners |
| A49 | 27%-29% Cr Low Carbon White Iron | Impeller, liners |
| A33 | 33% Cr Erosions & Corrosion Resistance White Iron | Impeller, liners |
| R55 | Natural Rubber | Impeller, liners |
| R33 | Natural Rubber | Impeller, liners |
| R26 | Natural Rubber | Impeller, liners |
| R08 | Natural Rubber | Impeller, liners |
| U01 | Polyurethane | Impeller, liners |
| G01 | Grey Iron | Frame plate, cover plate, expeller, expeller ring, bearing house, base |
| D21 | Ductile Iron | Frame plate, cover plate, bearing house, base |
| E05 | Carbon Steel | Shaft |
| C21 | Stainless Steel, 4Cr13 | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C22 | Stainless Steel, 304SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C23 | Stainless Steel, 316SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| S21 | Butyl Rubber | Joint rings, joint seals |
| S01 | EPDM Rubber | Joint rings, joint seals |
| S10 | Nitrile | Joint rings, joint seals |
| S31 | Hypalon | Impeller, liners, expeller ring, expeller, joint rings, joint seals |
| S44/K S42 | Neoprene | Impeller, liners, Joint rings, joint seals |
| S50 | Viton | Joint rings, joint seals |
