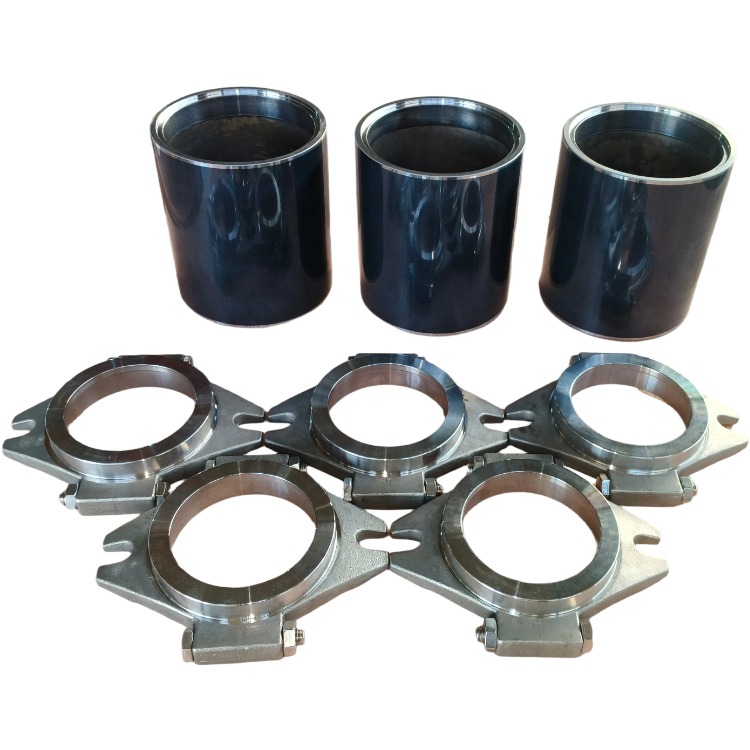

Slurry pump Gland assembly
Gland assembly with the Part code 044 is designated for various types of split glands, which are applicable to AH slurry pumps, G-type gravel pumps, ZGB heavy-duty slurry pumps, L-series slurry pumps and other models.
As a wearing part, this component is available in materials including HT200, stainless steel 304 and stainless steel 316.
| Part name | Part code number | Pump model |
| Gland assembly | A044 | 20A-L |
| Gland assembly | BSC044 | 50B-L |
| Gland assembly | B044 | 1.5/1B-AH |
| Gland assembly | B044 | 2/1.5B-AH |
| Gland assembly | C044 | 75C-L |
| Gland assembly | C044 | 3/2C-AH |
| Gland assembly | C044 | 4/3C-AH |
| Gland assembly | CH044 | 1.5/1C-HH |
| Gland assembly | D044 | 100D-L |
| Gland assembly | D044 | 4/3D-AH |
| Gland assembly | D044 | 6/4D-AH |
| Gland assembly | D044 | 3/2D-HH |
| Gland assembly | D044 | 6/4D-G |
| Gland assembly | E044 | 150E-L |
| Gland assembly | E044 | 6/4E-AH |
| Gland assembly | E044 | 8/6E-AH |
| Gland assembly | E044 | 10/8E-M |
| Gland assembly | E044 | 4/3E-HH |
| Gland assembly | E044 | 8/6E-G |
| Gland assembly | E044 | 6/4E-SH |
| Gland assembly | E044 | 6/4X-SH |
| Gland assembly | E044 | 6/4X-AH |
| Gland assembly | E044 | 8/6X-AH |
| Gland assembly | E044 | 4/3X-HH |
| Gland assembly | G044 | 10/8F-AH |
| Gland assembly | F044 | 6/4F-HH |
| Gland assembly | F044 | 6/4X-HH |
| Gland assembly | F044 | 10/8F-G |
| Gland assembly | F044 | 8/6F-SH |
| Gland assembly | F044 | 8/6X-SH |
| Gland assembly | G044 | 12/10G-G |
| Gland assembly | G044 | 14/12G-G |
| Gland assembly | G044 | 12/10G-GH |
| Gland assembly | E044 | 8/6R-AH |
| Gland assembly | E044 | 10/8R-M |
| Gland assembly | E044 | 6/4R-AHRP |
| Gland assembly | S044 | 300S-L |
| Gland assembly | F044 | 6S-H |
| Gland assembly | F044 | 6S-HP |
| Gland assembly | F044 | 8/6S-H |
| Gland assembly | F044 | 8/6S-HP |
| Gland assembly | F044 | 8/6X-H |
| Gland assembly | F044 | 8/6X-HP |
| Gland assembly | F044 | 10/8S-G |
| Gland assembly | F044 | 10/8S-GH |
| Gland assembly | G044 | 10/8ST-AH |
| Gland assembly | G044 | 12/10ST-AH |
| Gland assembly | G044 | 14/12ST-AH |
| Gland assembly | G044 | 10/8X-AH |
| Gland assembly | GH044 | 12/10T-SH |
| Gland assembly | H044 | 16/14TU-AH |
| Gland assembly | E044 | 80ZGB |
| Gland assembly | C044 | 80ZD-Z |
| Gland assembly | E044 | 100ZGB |
| Gland assembly | E044 | 100ZG-Z |
| Gland assembly | F044 | 150ZGB |
| Gland assembly | F044 | 200ZGB |
| Gland assembly | 250ZGa-019 | 250ZGB |
| Gland assembly | 250ZGa-019 | 250ZGB-120 |
| Gland assembly | 250ZGa-019 | 250ZGBP |
| Gland assembly | 250ZGa-019 | 300ZGB |
TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:
| Material Code | Material Description | Application Components |
| A05 | 23%-30% Cr White Iron | Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert |
| A07 | 14%-18% Cr White Iron | Impeller, liners |
| A49 | 27%-29% Cr Low Carbon White Iron | Impeller, liners |
| A33 | 33% Cr Erosions & Corrosion Resistance White Iron | Impeller, liners |
| R55 | Natural Rubber | Impeller, liners |
| R33 | Natural Rubber | Impeller, liners |
| R26 | Natural Rubber | Impeller, liners |
| R08 | Natural Rubber | Impeller, liners |
| U01 | Polyurethane | Impeller, liners |
| G01 | Grey Iron | Frame plate, cover plate, expeller, expeller ring, bearing house, base |
| D21 | Ductile Iron | Frame plate, cover plate, bearing house, base |
| E05 | Carbon Steel | Shaft |
| C21 | Stainless Steel, 4Cr13 | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C22 | Stainless Steel, 304SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C23 | Stainless Steel, 316SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| S21 | Butyl Rubber | Joint rings, joint seals |
| S01 | EPDM Rubber | Joint rings, joint seals |
| S10 | Nitrile | Joint rings, joint seals |
| S31 | Hypalon | Impeller, liners, expeller ring, expeller, joint rings, joint seals |
| S44/K S42 | Neoprene | Impeller, liners, Joint rings, joint seals |
| S50 | Viton | Joint rings, joint seals |
