Slurry Pump Lantern Ring (Part No. 063)
Warman slurry pump lantern ring (Part No. 063) is a key sealing component for slurry pump. It comes in 304/316 stainless steel, ceramics and polyethylene, selected for excellent wear & corrosion resistance against abrasive slurries.
It integrates with pressure relief cover, auxiliary impeller and packing to form a reliable shaft seal. Equipped with evenly distributed holes for grease injection, it enhances sealing, reduces friction, prevents slurry leakage and protects the pump shaft.
Suitable for Warman pumps in cyclone separation systems, it ensures stable operation under high pressure and abrasion, boosting the overall efficiency of the pump-cyclone system.
| Slurry Pump Lantern Ring Code | AH Slurry Pumps | Slurry Pump Materials |
| C063 | 3/2C-AH, 4/3C-AH | C21,C23,P50,P05 |
| D063 | 4/3D-AH, 6/4D-AH | C21,C23,P50,P05 |
| E063 | 6/4E-AH, 8/6E-AH, 8/6R-AH | C21,C23,P50,P05 |
| G063 | 10/8F-AH, 10/8ST-AH, 12/10ST-AH, 14/12ST-AH | C21,C23,P50,P05 |
| H063 | 16/14TU-AH, 18/16TU-AH, 20/18TU | C21,C23,P50,P05 |
| Slurry Pump Lantern Ring Code | HH Slurry Pumps | Slurry Pump Materials |
| CH063 | 1.5/1C-HH | C21,C23,P50,P05 |
| D063 | 3/2D-HH | C21,C23,P50,P05 |
| E063 | 4/3E-HH | C21,C23,P50,P05 |
| F063 | 6/4F-HH | C21,C23,P50,P05 |
| Slurry Pump Lantern Ring Code | M Slurry Pumps | Slurry Pump Materials |
| E063 | 10/8E-M, 10/8R-M | SS321 |
| Slurry Pump Lantern Ring Code | L Slurry Pumps | Slurry Pump Materials |
| A063 | 20A-L | C21,C23,P50,P05 |
| BSC063 | 50B-L | C21,C23,P50,P05 |
| C063 | 75C-L | C21,C23,P50,P05 |
| D063 | 100D-L | C21,C23,P50,P05 |
| E063 | 150E-L | C21,C23,P50,P05 |
| S063 | 300S-L | C21,C23,P50,P05 |
| Gravel Pump Lantern Ring Code | G(H) Gravel Pumps | Slurry Pump Materials |
| D063 | 6/4D-G | C21,C23,P50,P05 |
| E063 | 8/6E-G | C21,C23,P50,P05 |
| F063 | 10/8F-G, 10/8S-G, 10/8S-GH | C21,C23,P50,P05 |
| G063 | 12/10G-G, 14/12G-G, 12/10G-GH | C21,C23,P50,P05 |
| H063 | 16/14TU-GH | C21,C23,P50,P05 |
Main Wear Parts List of Slurry Pumps
Metal Lined Slurry Pump Spares. (A05, A33, A07, A49)
Cover Plate / Throat Bush / Volute Liner / Impeller / Frame Plate Liner Insert / Stuffing Box / Frame Plate / Shaft Sleeve / Expeller / Expeller ring / Bearing Assembly.
Cover Plate / Throat Bush / Volute Liner / Impeller / Frame Plate Liner Insert / Stuffing Box / Frame Plate / Shaft Sleeve / Expeller / Expeller ring / Bearing Assembly.
Rubber Lined Slurry Pump Spares. (R55, PU)
Throat Bush / Cover Plate Liner / Impeller / Frame Plate Liner Insert / Expeller ring.Polyurethane Slurry Pump Spares
Throat Bush / Cover Plate Liner / Impeller / Frame Plate Liner Insert / Expeller ring.Polyurethane Slurry Pump Spares

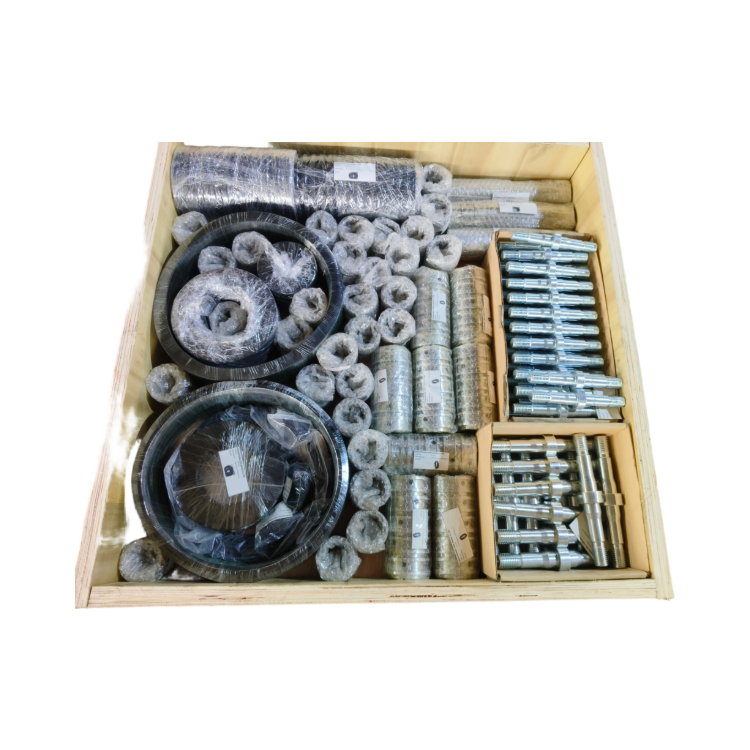

Small Parts of Bearing Assembly
Bearing housing / Grease Retainer / Bearing / Piston Ring / Labyrinth / End Cover / Lock Nut.
Small Parts of Seal Accessories
Stuffing Box / Packing / Neck Ring / Split Packing Gland / Lantern Ring / Lantern Restrictor / Expeller / Expeller Ring / Shaft Sleeve / Shaft Spacer / Mechanical Seal / Mechanical Seal Box
Email: rita@ruitepump.com
Whatsapp: +8619933139867
TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:
| Material Code | Material Description | Application Components |
| A05 | 23%-30% Cr White Iron | Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert |
| A07 | 14%-18% Cr White Iron | Impeller, liners |
| A49 | 27%-29% Cr Low Carbon White Iron | Impeller, liners |
| A33 | 33% Cr Erosions & Corrosion Resistance White Iron | Impeller, liners |
| R55 | Natural Rubber | Impeller, liners |
| R33 | Natural Rubber | Impeller, liners |
| R26 | Natural Rubber | Impeller, liners |
| R08 | Natural Rubber | Impeller, liners |
| U01 | Polyurethane | Impeller, liners |
| G01 | Grey Iron | Frame plate, cover plate, expeller, expeller ring, bearing house, base |
| D21 | Ductile Iron | Frame plate, cover plate, bearing house, base |
| E05 | Carbon Steel | Shaft |
| C21 | Stainless Steel, 4Cr13 | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C22 | Stainless Steel, 304SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C23 | Stainless Steel, 316SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| S21 | Butyl Rubber | Joint rings, joint seals |
| S01 | EPDM Rubber | Joint rings, joint seals |
| S10 | Nitrile | Joint rings, joint seals |
| S31 | Hypalon | Impeller, liners, expeller ring, expeller, joint rings, joint seals |
| S44/K S42 | Neoprene | Impeller, liners, Joint rings, joint seals |
| S50 | Viton | Joint rings, joint seals |
