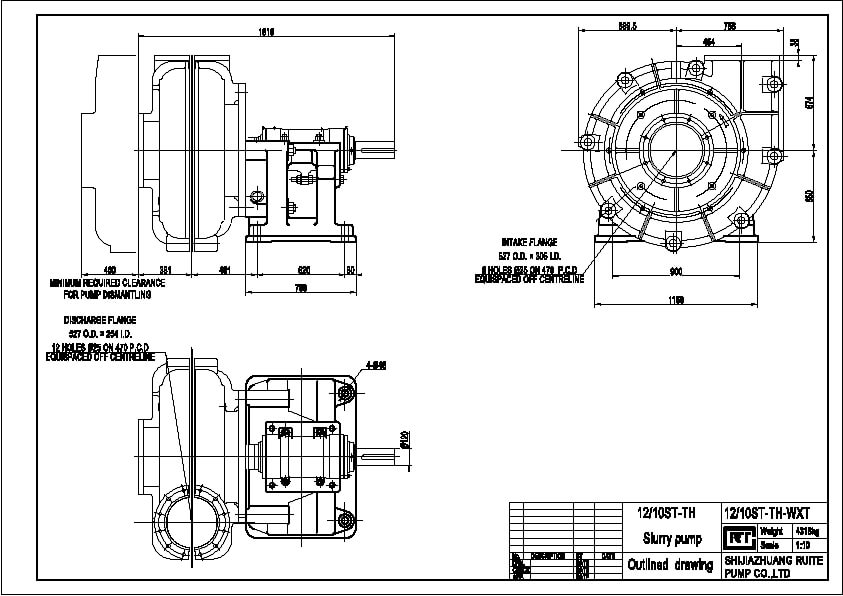

12/10 ST-TH Horizontal Slurry Pump, Factory outlet from China

short description:

Max. Power (kw):560
Materials:high-chromium alloy & rubber
Capacity Q (m3/h):936-1980
Head H (m):7-68
Speed n(rpm):300-800
Eff. Η (%):82
NPSH(m):6
Impeller Vane No.:5


Product Detail

Material

Product Tags

Description

TH series are single-stage, single-suction, cantilever, double-shell, horizontal centrifugal slurry pumps.They are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries for Conveying strong corrosive, high-concentrative slurries.Especially suitable for a variety of harsh working conditions, it is the first choice for the transportation of mine mill slurry and tailings slurry.They are mainly used for mill underflow, cyclone feeding, flotation, tailings efflux, sand removal, dredging, FGD, heavy media, ash removal, etc.

Diameter: 25mm~450mm
Power: 0-2000kw
Flow rate: 0~5400㎥/h
Head: 0~128m
Speed: 0~3600rpm
Material: high chrome alloy or rubber

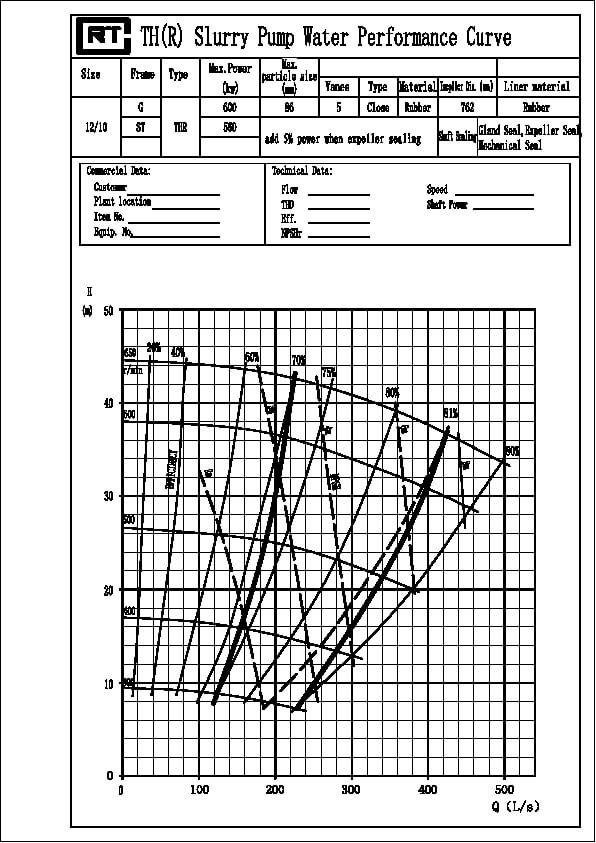

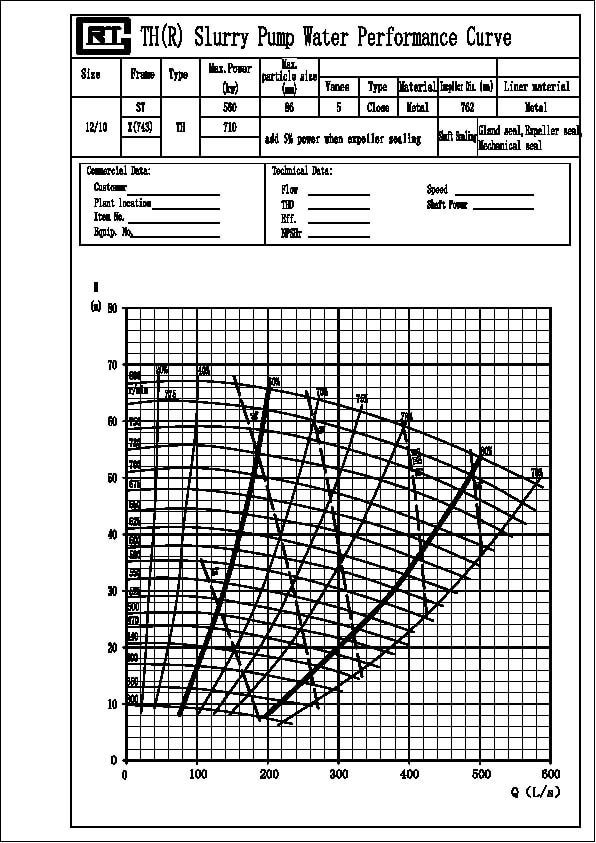

TH(R) Slurry Pump Water Performance Curve

What Are Slurries

Slurries are mixtures of solids and liquids, with the liquid serving as the transport mechanism used to move the solid. The size of the particles (or solids) in slurries ranges from one micron in diameter up to hundreds of millimeters in diameter. The particle size significantly impacts a pump's ability to move a slurry through a process line.
All slurries share five essential characteristics:
. More abrasive than pure liquids.
. Thicker in consistency than pure liquids.
. May contain a high number of solids (measured as a percentage of the total volume).
. The solid particles usually settle out of the slurry's precipitate relatively quickly when not in motion (depending on the particle size).
. Slurries require more energy to move than do pure liquids.

Shijiazhuang Ruite Pump Co.Ltd

Abrasion Resistant Solid Handling Centrifugal Sand Washing Slurry Pump
TH series Centrifugal Horizontal Heavy Duty Slurry Pumps are designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.

Feature

1. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
2. Anti-abrasion wet parts: The wet parts can be made of pressure molded rubber. They are completely interchangeable with metal wet parts.
3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
4. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control, etc;
5. The shaft seal uses the packing seal, expeller seal and mechanical seal;

images8

The Process Flow

images71

Texture Profile

images6

More Details

images12

About Ruite

1.Ruite is a leading Chinese pump manufacturer and devoted to offering professional slurry pump solutions for you. We have successfully undertaken many projects in over 40 countries. Innovative R&D department and state-of-art technology are the basis of Excellence high quality products. Scientific model selection and slurry transporting solution helps to reduce your purchase and maintenance cost. Above all, all-around services will save you a lot of effort and it will be a enjoyable experience.

2.Ruite Pump Industry Co., Ltd. is devoting to offering the best slurry pump solution around the world. With years of accumulation and development, we have formed a complete system of slurry pump production, design, selection, application and maintenance. Our products are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries. Thanks to the trust and recognition of our clients from over 40 countries, we are becoming one of the most important slurry pump suppliers in China.

3.Ruite production line includes four major procedures strictly supervised by our quality control personnel, including foundry, machining, assembling and testing.

4.Ruite has well-developed QC department.

5.Quality control file:

6.Records of quality control process: casing test record, semi-finished product inspection, processing inspection, assembly inspection, pressure testing record, spray paint inspection, motor packing inspection, shipping list;


  • Previous:
  • Next:

  • TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:

    Material Code Material Description Application Components
    A05 23%-30% Cr White Iron Impeller, liners, expeller, expeller ring, stuffing box
    A07 14%-18% Cr White Iron Impeller, liners
    A49 27%-29% Cr Low Carbon White Iron Impeller, liners
    A33 33% Cr Erosions & Corrosion Resistance White Iron Impeller, liners
    R55 Natural Rubber Impeller, liners
    R33 Natural Rubber Impeller, liners
    R26 Natural Rubber Impeller, liners
    R08 Natural Rubber Impeller, liners
    U01 Polyurethane Impeller, liners
    G01 Grey Iron Frame plate, cover plate, expeller, expeller ring, bearing house, base
    D21 Ductile Iron Frame plate, cover plate, bearing house, base
    E05 Carbon Steel Shaft
    C21 Stainless Steel, 4Cr13 Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C22 Stainless Steel, 304SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C23 Stainless Steel, 316SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    S21 Butyl Rubber Joint rings, joint seals
    S01 EPDM Rubber Joint rings, joint seals
    S10 Nitrile Joint rings, joint seals
    S31 Hypalon Impeller, liners, expeller ring, expeller, joint rings, joint seals
    S44/K S42 Neoprene Impeller, liners, Joint rings, joint seals
    S50 Viton Joint rings, joint seals



    THH SLURRY PUMP CLEAR WATER PERFORMANCE DATASHEET

    MODEL

    MAX

    MATERIAL

    CAPACITY

    HEAD

    SPEED

    MAX

    NPSH

    POWER

    LINER

    IMPELLER

    m3/h

    l/s

    H(m)

    n(r/min)

    η%

    m

    KW

    1.5/1C-THH

    30

    M

    M

    16~34

    4.5~9.5

    25~92

    1400~2200

    20

    2~5.5

    3/2D-THH

    60

    M

    M

    68~137

    19~38

    25~87

    850~1400

    47

    3~7.5

    4/3E-THH

    120

    M

    M

    126~252

    35~70

    12~97

    600~1400

    50

    2~5

    6/4S-THH

    560

    M

    M

    324~720

    90~200

    30~118

    600~1000

    64

    3~8

    6S-TH

    560

    M

    M

    468~1000

    130~280

    20~94

    500~1000

    65

    4~12

    8/6T-THH

    1200

    M

    M

    576~1152

    160~320

    32~95

    450~725

    65

    6~10
