THR Rubber Slurry Pump manufacturer from China

short description:

SPECIFICATIONS:
Size: 1″ to 22″
Capacity: 3.6-5400 m3/h
Head: 5-66m
Handing solids: 0-130mm
Concentration: 0%-70%
Materials: Natural rubber, Synthetic rubber, Neoprene, Hypalon, NBR, Butyl, EPDM, Polyurethane etc.


Product Detail

Material

Product Tags

THR rubber lined slurry pumps are similar to AH metal lined slurry pump in structure. The main difference between AH and THR is the material of wetted parts, which are natural rubber, synthetic rubber or other wear-resistant rubbers. THR rubber lined slurry pumps are more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges.

Design Features:

√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.

√ Ductile iron fully lined casing provides durability, strength, safety, and long service life.

√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.

√ Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs.

√ Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life.

√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.

√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the slurry pump, resulting in reliable operation and prolonged bearing life.

√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.

√ Optional dry running shaft seal reduces or eliminates flush water requirements.

√ Effective expeller prolongs packing life while reducing or eliminating flush water requirement.

√ Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized slurry pump.

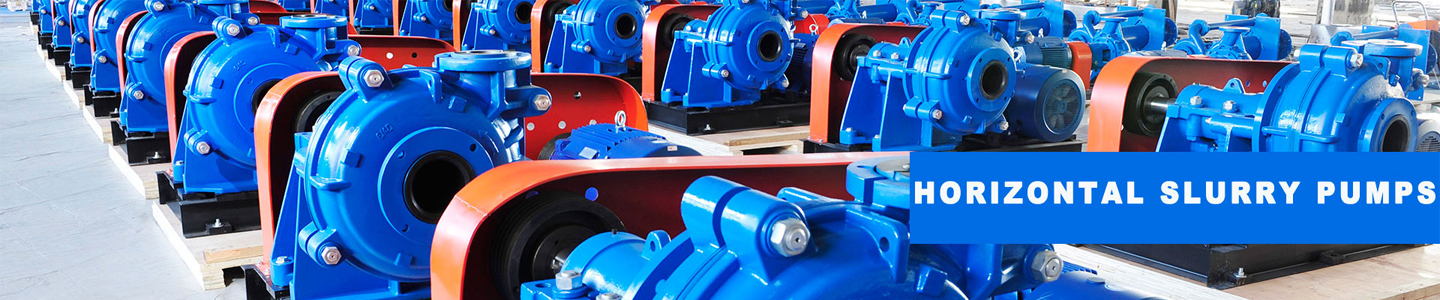

1440

THR Rubber Lined Slurry Pumps Performance Parameters:

Model

Max. Power

(kw)

Materials

Clear water performance

Impeller

Vane No.

Liner

Impeller

Capacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

1.5/1B-THR

15

Rubber

Rubber

10.8-25.2

7-52

1400-3400

35

2-4

3

2/1.5B-THR

15

Rubber

Rubber

25.2-54

5.5-41

1000-2600

50

3.5-8

5

3/2C-THR

30

Rubber

Rubber

36-75.6

13-39

1300-2100

55

2-4

5

4/3C-THR

30

Rubber

Rubber

79.2-180

5-34.5

800-1800

59

3-5

5

4/3D-THR

60

Rubber

Rubber

79.2-180

5-34.5

800-1800

59

3-5

5

6/4D-THR

60

Rubber

Rubber

144-324

12-45

800-1350

65

3-5

5

6/4E-THR

120

Rubber

Rubber

144-324

12-45

800-1350

65

3-5

5

8/6E-THR

120

Rubber

Rubber

324-720

7-49

400-1000

65

5-10

5

8/6R-THR

300

Rubber

Rubber

324-720

7-49

400-1000

65

5-10

5

10/8ST-THR

560

Rubber

Rubber

540-1188

12-50

400-750

75

4-12

5

10/8E-M

120

Rubber

Rubber

540-1188

10-42

500-900

79

5-9

5

12/10ST-THR

560

Rubber

Rubber

720-1620

7-45

300-650

80

2.5-7.5

5

14/12ST-THR

560

Rubber

Rubber

1152-2520

13-44

300-500

79

3-8

5

16/14ST-THR

560

Rubber

Rubber

1368-3060

11-63

250-550

79

4-10

5

18/16TU-THR

1200

Rubber

Rubber

2160-5040

8-66

200-500

80

4.5-9

5

20/18TU-THR

1200

Rubber

Rubber

2520-5400

13-57

200-400

85

5-10

5



 THR Rubber Lined Slurry Pumps Applications:

THR series rubber slurry pumps are widely used in Mineral processing, Ball mill discharge, Bottom/fly ash, lime grinding, Coal, Coarse sand, Coarse tailings, Dredging, FGD, Fine tailings, Cyclone feed, Flotation, Heavy media, Minerals concentrate, Mineral sands, Ni acid slurry, Oil sands, Tallings, Phosphoric acid, Phosphate matrix, Process chemical, Pulp and paper, Rod mill discharge, SAG mill discharge, Wet crushers etc.

* THR rubber lined slurry pumps and spares are only interchangeable with Warman® THR rubber lined slurry pumps and spares.


  • Previous:
  • Next:

  • TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:

    Material Code Material Description Application Components
    A05 23%-30% Cr White Iron Impeller, liners, expeller, expeller ring, stuffing box
    A07 14%-18% Cr White Iron Impeller, liners
    A49 27%-29% Cr Low Carbon White Iron Impeller, liners
    A33 33% Cr Erosions & Corrosion Resistance White Iron Impeller, liners
    R55 Natural Rubber Impeller, liners
    R33 Natural Rubber Impeller, liners
    R26 Natural Rubber Impeller, liners
    R08 Natural Rubber Impeller, liners
    U01 Polyurethane Impeller, liners
    G01 Grey Iron Frame plate, cover plate, expeller, expeller ring, bearing house, base
    D21 Ductile Iron Frame plate, cover plate, bearing house, base
    E05 Carbon Steel Shaft
    C21 Stainless Steel, 4Cr13 Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C22 Stainless Steel, 304SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C23 Stainless Steel, 316SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    S21 Butyl Rubber Joint rings, joint seals
    S01 EPDM Rubber Joint rings, joint seals
    S10 Nitrile Joint rings, joint seals
    S31 Hypalon Impeller, liners, expeller ring, expeller, joint rings, joint seals
    S44/K S42 Neoprene Impeller, liners, Joint rings, joint seals
    S50 Viton Joint rings, joint seals



    THH SLURRY PUMP CLEAR WATER PERFORMANCE DATASHEET

    MODEL

    MAX

    MATERIAL

    CAPACITY

    HEAD

    SPEED

    MAX

    NPSH

    POWER

    LINER

    IMPELLER

    m3/h

    l/s

    H(m)

    n(r/min)

    η%

    m

    KW

    1.5/1C-THH

    30

    M

    M

    16~34

    4.5~9.5

    25~92

    1400~2200

    20

    2~5.5

    3/2D-THH

    60

    M

    M

    68~137

    19~38

    25~87

    850~1400

    47

    3~7.5

    4/3E-THH

    120

    M

    M

    126~252

    35~70

    12~97

    600~1400

    50

    2~5

    6/4S-THH

    560

    M

    M

    324~720

    90~200

    30~118

    600~1000

    64

    3~8

    6S-TH

    560

    M

    M

    468~1000

    130~280

    20~94

    500~1000

    65

    4~12

    8/6T-THH

    1200

    M

    M

    576~1152

    160~320

    32~95

    450~725

    65

    6~10
