ISG 32-200 3kw 32mm outlet vertical pipeline centrifugal electric water pump

short description:

Inlet&Outlet diameter: 15-500mm

Max head: 150m

Max flow: 1450m3/h

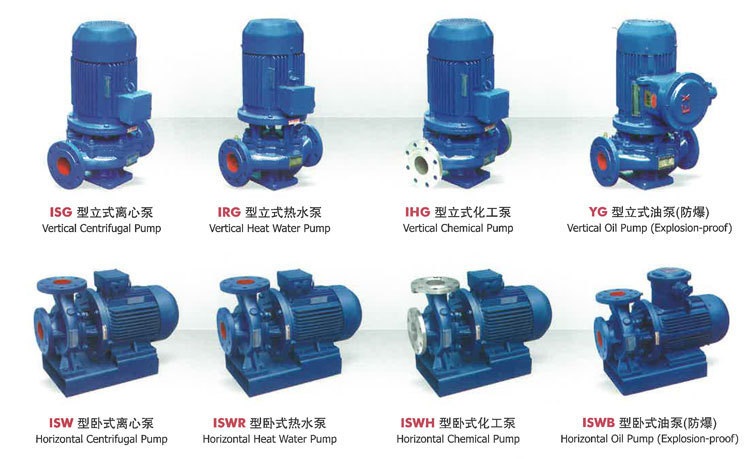

Type: ISG, ISW, IRG, ISWR, IHG, ISWH, YG, ISWB


Product Detail

Material

Product Tags

ISG 32-200 3kw 32mm outlet vertical pipeline centrifugal electric water pump  Introduction:

ISG and ISW type series single stage single stage pipeline centrifugal pump, IS this unit science and technology personnel joint domestic pump experts choose excellent domestic hydraulic model, using IS type centrifugal pump's performance parameters, in general vertical pump on the basis of ingenious combination design and become, at the same time according to using temperature, medium and so on the different in ISG and ISW type IS derived based on the hot water, high temperature, corrosive chemical pump, oil pump. This series of products with high efficiency and energy saving, low noise, reliable performance etc.

1, suction pressure acuities were 1.0 MPa, or pump system maximum working pressure or less 1.6 MPa, namely pump inlet pressure + pump head acuities were 1.6 MPa, pump static pressure test pressure is 2.5 MPa, please specify when ordering system working pressure. Pump system work pressure is greater than 1.6MPa in order should be put forward separately, so that in the manufacturing pump flow part and connection part adopts cast steel materials.
2, environment temperature < 40 °C, relative humidity is <95% 3, conveying medium of solid particles in the volume content of no more than unit volume 0.1%, particle size < 0.2 mm. Note: if use medium for a tiny particles is required, please declare in order, so that manufacturers use wear-resisting type mechanical seal.

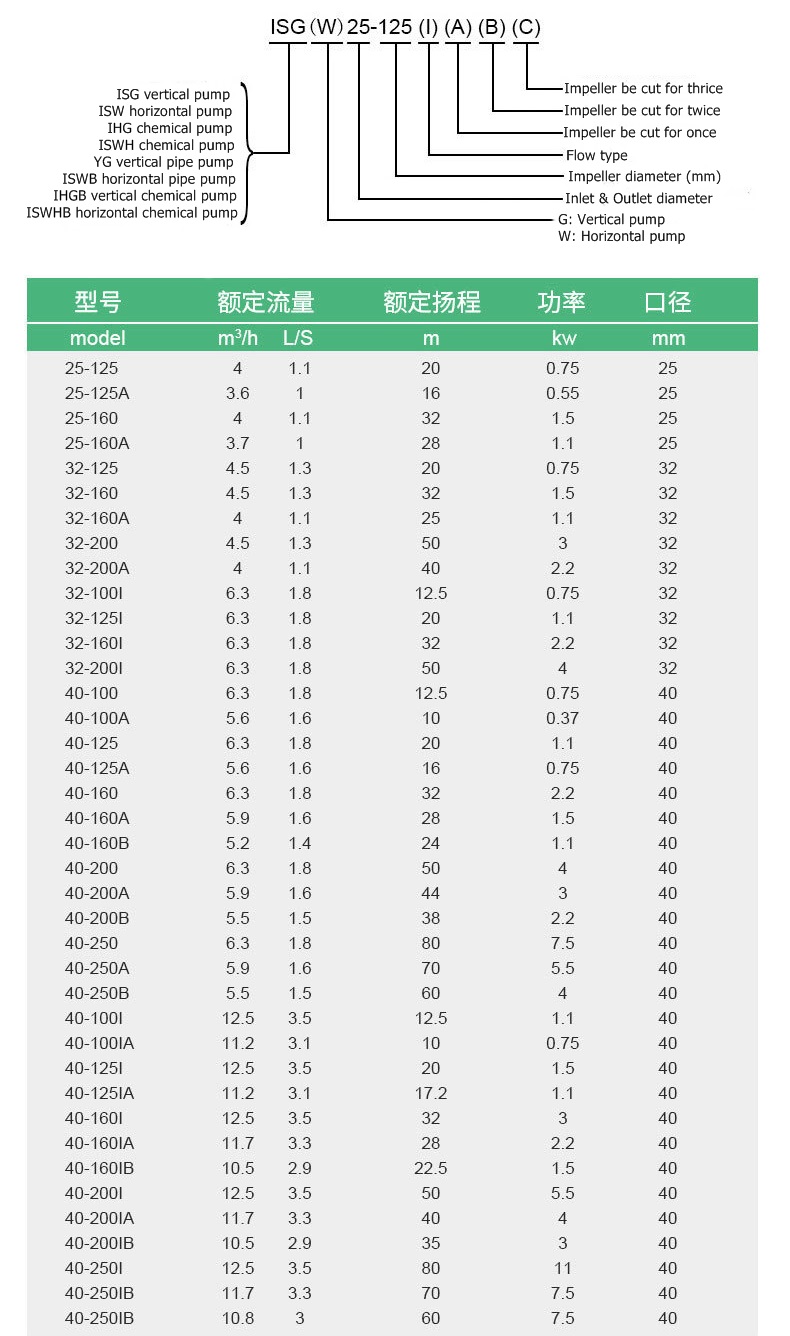

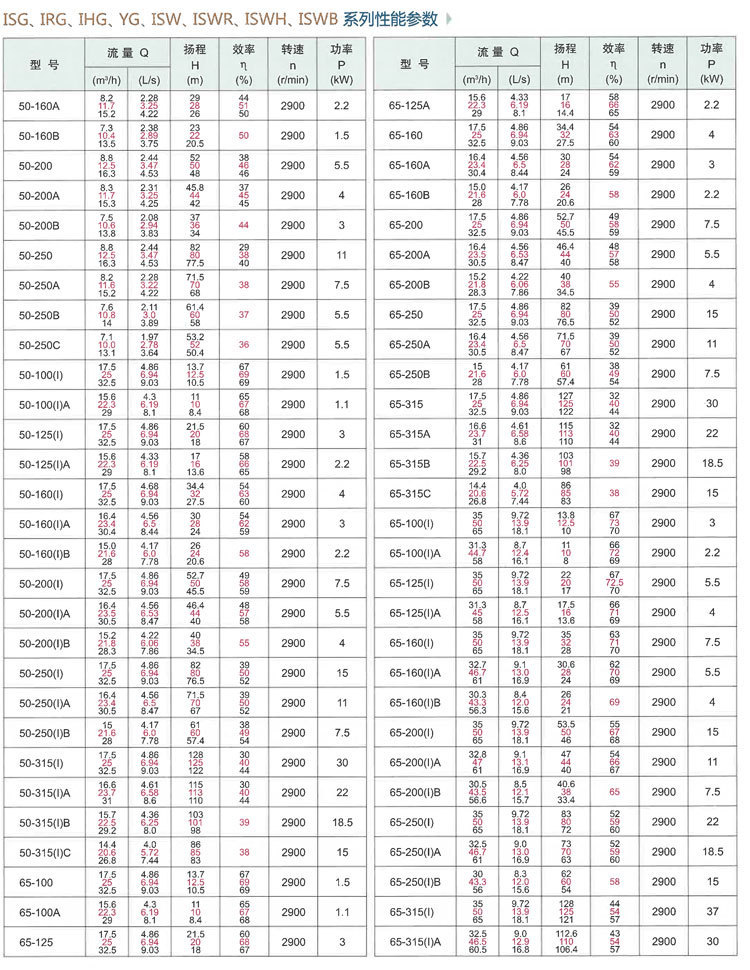

ISG 32-200 3kw 32mm outlet vertical pipeline centrifugal electric water pump Performance Range:

Max Flow: 1450 m3/h
Delivery Head:1-150 m
Size.: DN15-DN500 mm
Pump Material: Cast iron
Suitable Medium: Sulfuric acid, hydrochloric acid, nitric acid, acetic acid, hydrofluoric acid, aqua regia, strong alkali, strong oxidant, organic solvent
Liquid Temperature: ≤ 80 ℃

ISG 32-200 3kw 32mm outlet vertical pipeline centrifugal electric water pump  Applications:

Widely used in chemical, pharmaceutical, petroleum, metallurgy, electric power, electroplating, pickling, pesticides, papermaking and other industries in the liquid transport, wastewater treatment and acid and other processes.

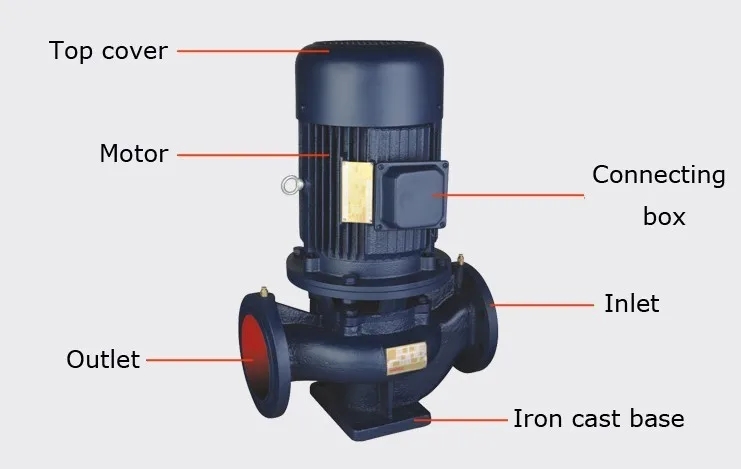

ISG 32-200 3kw 32mm outlet vertical pipeline centrifugal electric water pump Structure

www.ruitepumps.com

www.ruitepumps.com

www.ruitepumps.com

More size about ISG, ISW, booster pump or chemical pump, please contact us. Our technical people will choose the right pump for you.

If you need other types pump, please tell us your detail requirements, our technical people will choose the right pump for you.

Email: rita@ruitepump.com

Whatsapp/wechat: +8619933139867


  • Previous:
  • Next:

  • TH Cantilevered, Horizontal, Centrifugal Slurry Pump  Material:

    Material Code Material Description Application Components
    A05 23%-30% Cr White Iron Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert
    A07 14%-18% Cr White Iron Impeller, liners
    A49 27%-29% Cr Low Carbon White Iron Impeller, liners
    A33 33% Cr Erosions & Corrosion Resistance White Iron Impeller, liners
    R55 Natural Rubber Impeller, liners
    R33 Natural Rubber Impeller, liners
    R26 Natural Rubber Impeller, liners
    R08 Natural Rubber Impeller, liners
    U01 Polyurethane Impeller, liners
    G01 Grey Iron Frame plate, cover plate, expeller, expeller ring, bearing house, base
    D21 Ductile Iron Frame plate, cover plate, bearing house, base
    E05 Carbon Steel Shaft
    C21 Stainless Steel, 4Cr13 Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C22 Stainless Steel, 304SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C23 Stainless Steel, 316SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    S21 Butyl Rubber Joint rings, joint seals
    S01 EPDM Rubber Joint rings, joint seals
    S10 Nitrile Joint rings, joint seals
    S31 Hypalon Impeller, liners, expeller ring, expeller, joint rings, joint seals
    S44/K S42 Neoprene Impeller, liners, Joint rings, joint seals
    S50 Viton Joint rings, joint seals
