High efficiency TSP Vertical slurry pump interchangeable with Warman

short description:

Diameter: 40mm~300mm
Power: 0~200kw
Flow rate:0-1267㎥/h (1500l/s)
Head: 0-40m
Speed:350-2200(r/min)
Material: high chrome alloy or rubber


  • :
  • Product Detail

    Material

    Product Tags

    Description

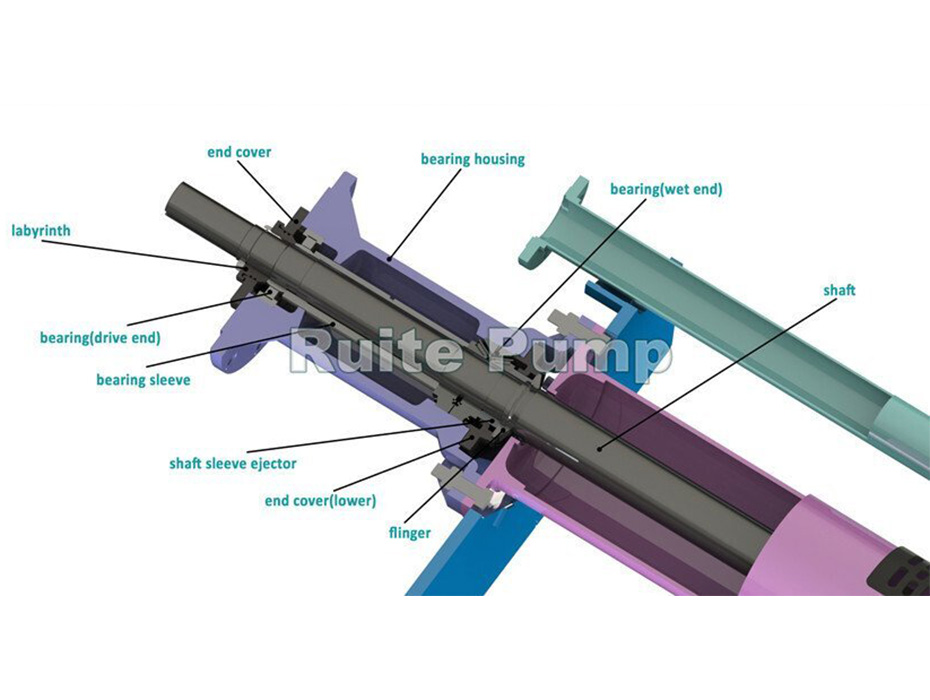

    TSP Series vertical slurry pumps are no submerged bearings or seals cantilevered pumps, which ideal for a variety of submerged suction pumping applications. These pumps operate well in a variety of sump conditions, and can also be readily applied on floating dewatering or other floating pump platforms.

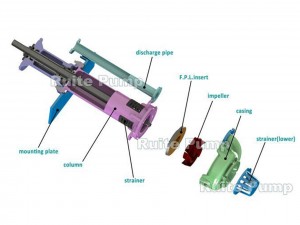

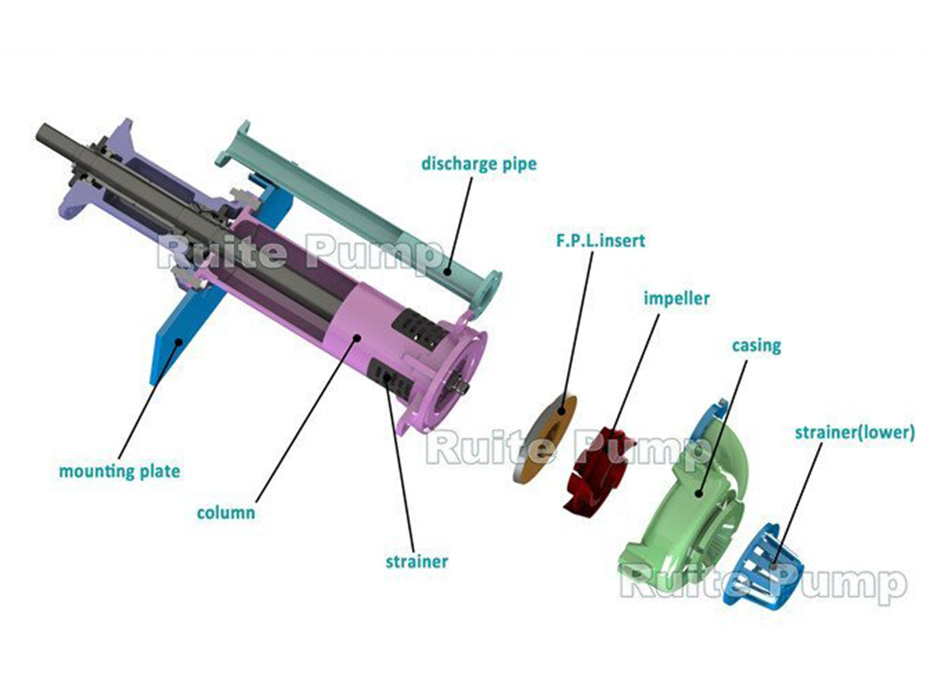

    Wetted Parts

    Liners – Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints. Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.
    Impeller – Hard metal and molded elastomer impellers are completely interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
    Throat bush – Hard metal and molded elastomer impellers are completely interchangeable. Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

    Feature

    1.Single casing structure with the advantages of light weight, small volume, easy installation;
    2.Anti-abrasive wet parts made of high-chrome alloys;
    3.Transmission shaft and suction pipe could be chosen according to liquid surface of the slurry pool;
    4.Slurry pump agitator could be installed to improve transfer efficiency;
    5.Able to run smoothly under various speeds.

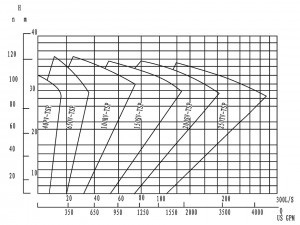

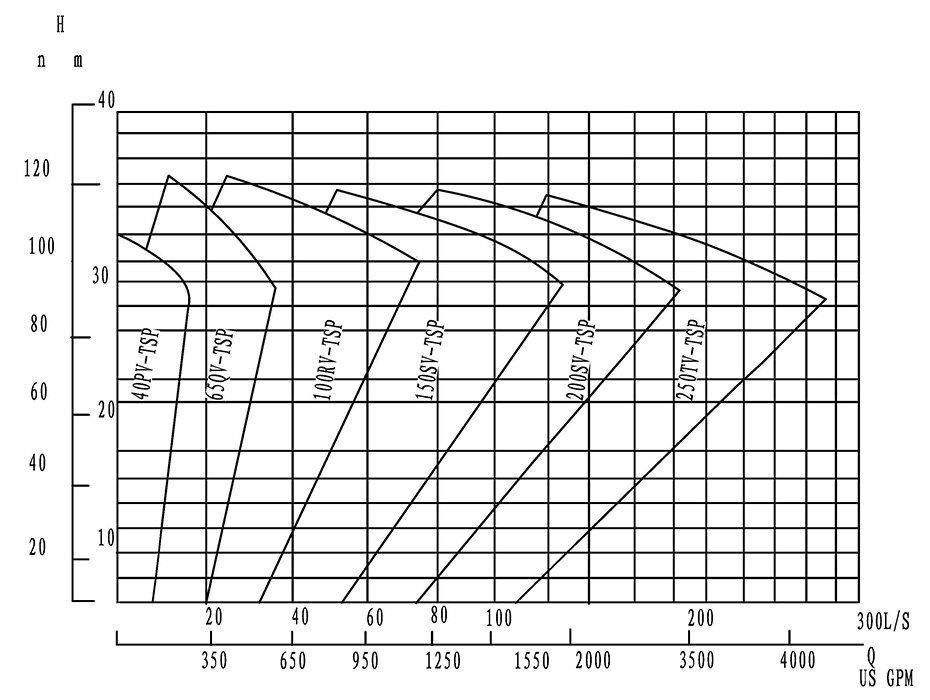

    Parameter


  • Previous:
  • Next:

  • TH Cantilevered, Horizontal, Centrifugal Slurry Pump  Material:

    Material Code Material Description Application Components
    A05 23%-30% Cr White Iron Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert
    A07 14%-18% Cr White Iron Impeller, liners
    A49 27%-29% Cr Low Carbon White Iron Impeller, liners
    A33 33% Cr Erosions & Corrosion Resistance White Iron Impeller, liners
    R55 Natural Rubber Impeller, liners
    R33 Natural Rubber Impeller, liners
    R26 Natural Rubber Impeller, liners
    R08 Natural Rubber Impeller, liners
    U01 Polyurethane Impeller, liners
    G01 Grey Iron Frame plate, cover plate, expeller, expeller ring, bearing house, base
    D21 Ductile Iron Frame plate, cover plate, bearing house, base
    E05 Carbon Steel Shaft
    C21 Stainless Steel, 4Cr13 Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C22 Stainless Steel, 304SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C23 Stainless Steel, 316SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    S21 Butyl Rubber Joint rings, joint seals
    S01 EPDM Rubber Joint rings, joint seals
    S10 Nitrile Joint rings, joint seals
    S31 Hypalon Impeller, liners, expeller ring, expeller, joint rings, joint seals
    S44/K S42 Neoprene Impeller, liners, Joint rings, joint seals
    S50 Viton Joint rings, joint seals
