2/1.5B-TH small Slurry Pump Manufacturer

short description:

Max. Power (kw):15
Materials:High chromium alloy or rubber
Capacity Q (m3/h):32.4~7
Head H (m):6~58
Speed n(rpm):1200~3200
Eff. Η (%):45
NPSH(m):3.5~8
Impeller Vane No.:5


Product Detail

Material

Product Tags

Description

TH series are single-stage, single-suction, cantilever, double-shell, horizontal centrifugal slurry pumps.They are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries for Conveying strong corrosive, high-concentrative slurries.Especially suitable for a variety of harsh working conditions, it is the first choice for the transportation of mine mill slurry and tailings slurry.They are mainly used for mill underflow, cyclone feeding, flotation, tailings efflux, sand removal, dredging, FGD, heavy media, ash removal, etc.

Diameter: 25mm~450mm
Power: 0-2000kw
Flow rate: 0~5400㎥/h
Head: 0~128m
Speed: 0~3600rpm
Material: high chrome alloy or rubber

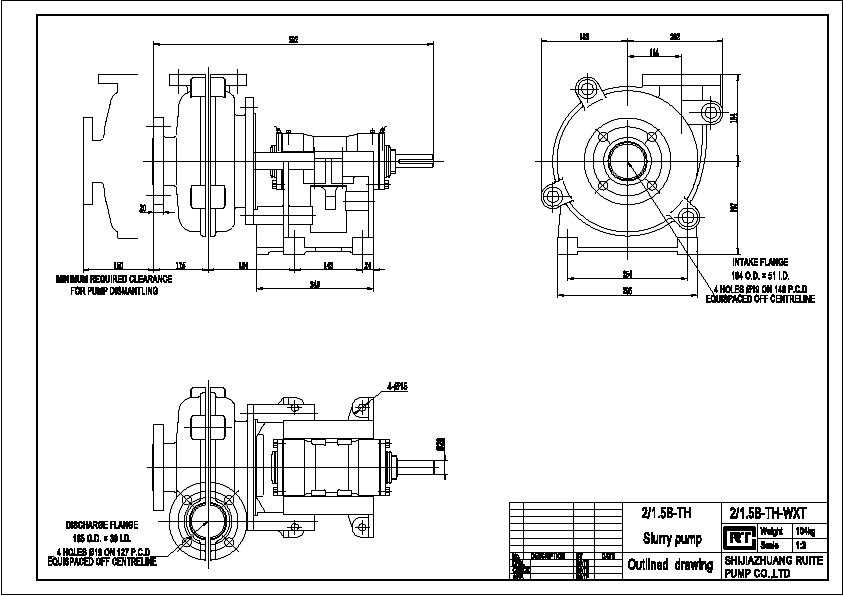

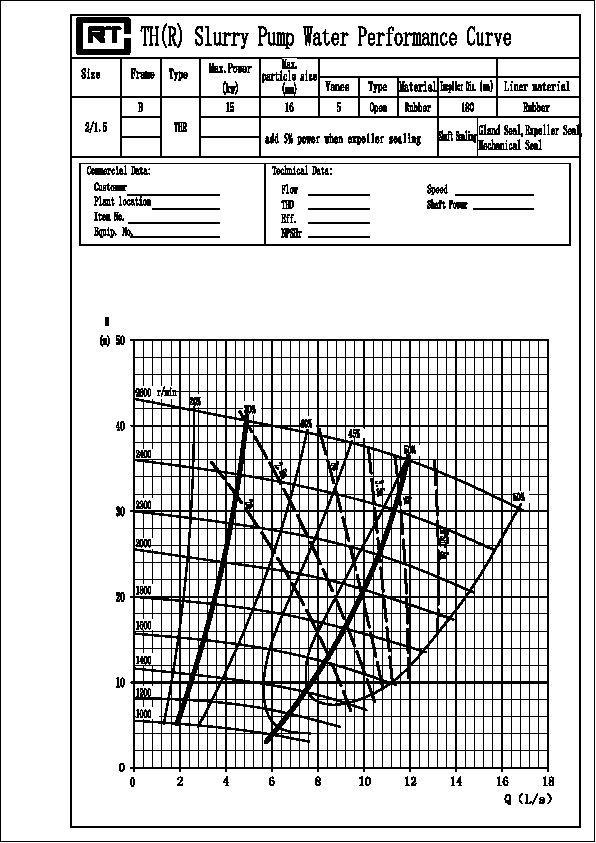

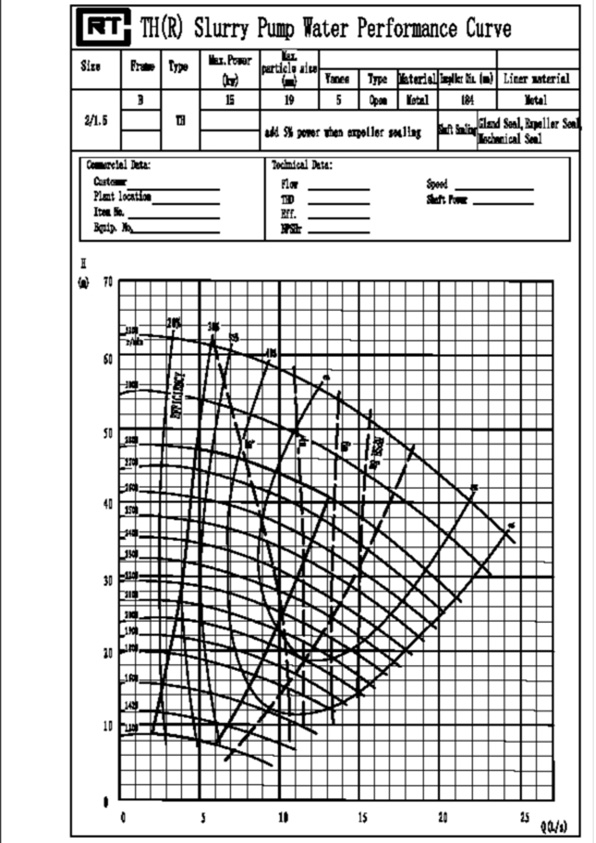

TH(R) Slurry Pump Water Performance Curve

Application

Slurry pumps are widely used in transport of abrasive solids in industries such as mining, dredging, and steel. They are often designed to be suitable for heavy-wearing and heavy-duty uses. Depending on the mining process, some slurries are corrosive which presents a challenge because corrosion-resistant materials like stainless steel are softer than high-iron steel. The most common metal alloy used to build slurry pumps is known as "high chrome", which is basically white iron with 25%-27% chromium added to make it less brittle. Rubber line casings are also used for certain application where the solid particles are small.

Shijiazhuang Ruite Pump Co.Ltd

Abrasion Resistant Solid Handling Centrifugal Sand Washing Slurry Pump
TH series Centrifugal Horizontal Heavy Duty Slurry Pumps are designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.

Feature

1. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
2. Anti-abrasion wet parts: The wet parts can be made of pressure molded rubber. They are completely interchangeable with metal wet parts.
3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
4. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control, etc;
5. The shaft seal uses the packing seal, expeller seal and mechanical seal;

images8

The Process Flow

images71

Texture Profile

images6

More Details

images12

Accessories Description

TH Slurry Pumps are designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.

At present, Ruite has the new material MC01, MC01 spares part service life is 1.5-2 times than A05 material.

Our production ability 1200ton per month,The largest wear-resistant casting weighs can up to 12 ton. Welcome to visit.thank you

Principle

1.Slurry pumps are typically larger in size than standard pumps, with more horsepower, and built with more rugged bearings and shafts. The most common type of slurry pump is the centrifugal pump. These pumps use a rotating impeller to move the slurry, similar to how a water-like liquid would move through a standard centrifugal pump.

2.Centrifugal pumps optimized for slurry pumping will generally feature the following in comparison to standard centrifugal pumps:

Larger impellers made with more material. This is to compensate for wear caused by abrasive slurries.
Fewer, thicker vanes on the impeller. This allows the passage of solids more readily — typically 2-5 vanes, compared to 5-9 vanes on a standard centrifugal pump.

3.The corrosiveness of the liquid or slurry mixture: more corrosive slurries will wear pump components more quickly and may dictate the selection of the material from which the pump is constructed.

4.The size and nature of the solids in the liquid: the size and nature will affect the amount of physical wear on the pump and its components .


  • Previous:
  • Next:

  • TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:

    Material Code Material Description Application Components
    A05 23%-30% Cr White Iron Impeller, liners, expeller, expeller ring, stuffing box
    A07 14%-18% Cr White Iron Impeller, liners
    A49 27%-29% Cr Low Carbon White Iron Impeller, liners
    A33 33% Cr Erosions & Corrosion Resistance White Iron Impeller, liners
    R55 Natural Rubber Impeller, liners
    R33 Natural Rubber Impeller, liners
    R26 Natural Rubber Impeller, liners
    R08 Natural Rubber Impeller, liners
    U01 Polyurethane Impeller, liners
    G01 Grey Iron Frame plate, cover plate, expeller, expeller ring, bearing house, base
    D21 Ductile Iron Frame plate, cover plate, bearing house, base
    E05 Carbon Steel Shaft
    C21 Stainless Steel, 4Cr13 Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C22 Stainless Steel, 304SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C23 Stainless Steel, 316SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    S21 Butyl Rubber Joint rings, joint seals
    S01 EPDM Rubber Joint rings, joint seals
    S10 Nitrile Joint rings, joint seals
    S31 Hypalon Impeller, liners, expeller ring, expeller, joint rings, joint seals
    S44/K S42 Neoprene Impeller, liners, Joint rings, joint seals
    S50 Viton Joint rings, joint seals



    THH SLURRY PUMP CLEAR WATER PERFORMANCE DATASHEET

    MODEL

    MAX

    MATERIAL

    CAPACITY

    HEAD

    SPEED

    MAX

    NPSH

    POWER

    LINER

    IMPELLER

    m3/h

    l/s

    H(m)

    n(r/min)

    η%

    m

    KW

    1.5/1C-THH

    30

    M

    M

    16~34

    4.5~9.5

    25~92

    1400~2200

    20

    2~5.5

    3/2D-THH

    60

    M

    M

    68~137

    19~38

    25~87

    850~1400

    47

    3~7.5

    4/3E-THH

    120

    M

    M

    126~252

    35~70

    12~97

    600~1400

    50

    2~5

    6/4S-THH

    560

    M

    M

    324~720

    90~200

    30~118

    600~1000

    64

    3~8

    6S-TH

    560

    M

    M

    468~1000

    130~280

    20~94

    500~1000

    65

    4~12

    8/6T-THH

    1200

    M

    M

    576~1152

    160~320

    32~95

    450~725

    65

    6~10
