Horizontal 8-6E-TH heavy duty Slurry Pump Manufacturer from china

short description:

Max. Power (kw):120
Materials:High chromium alloy or rubber
Capacity Q (m3/h):360~828
Head H (m):10~61
Speed n(rpm):500~1140
Eff. Η (%):72
NPSH(m):2~9
Impeller Vane No.:5


Product Detail

Material

Product Tags

Description

TH series are single-stage, single-suction, cantilever, double-shell, horizontal centrifugal slurry pumps.They are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries for Conveying strong corrosive, high-concentrative slurries.Especially suitable for a variety of harsh working conditions, it is the first choice for the transportation of mine mill slurry and tailings slurry.They are mainly used for mill underflow, cyclone feeding, flotation, tailings efflux, sand removal, dredging, FGD, heavy media, ash removal, etc.

Diameter: 25mm~450mm
Power: 0-2000kw
Flow rate: 0~5400㎥/h
Head: 0~128m
Speed: 0~3600rpm
Material: high chrome alloy or rubber

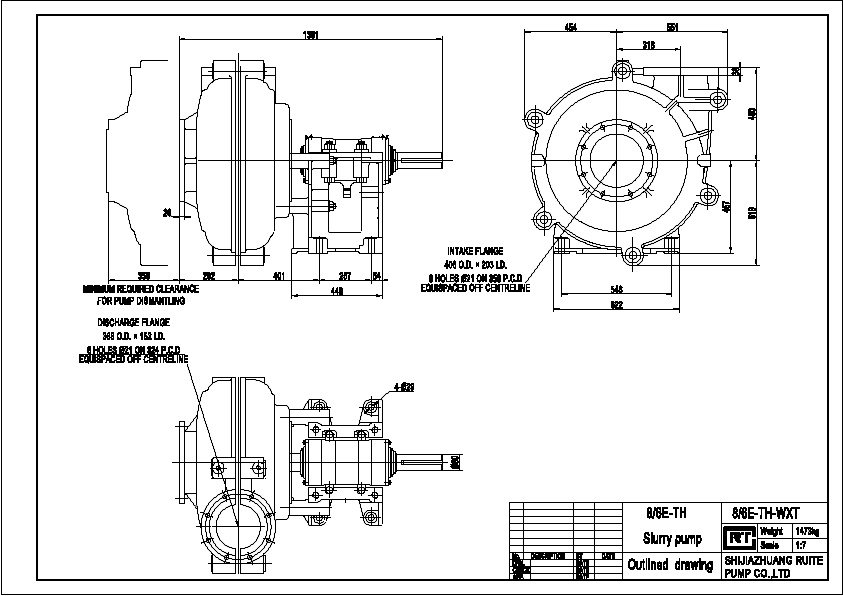

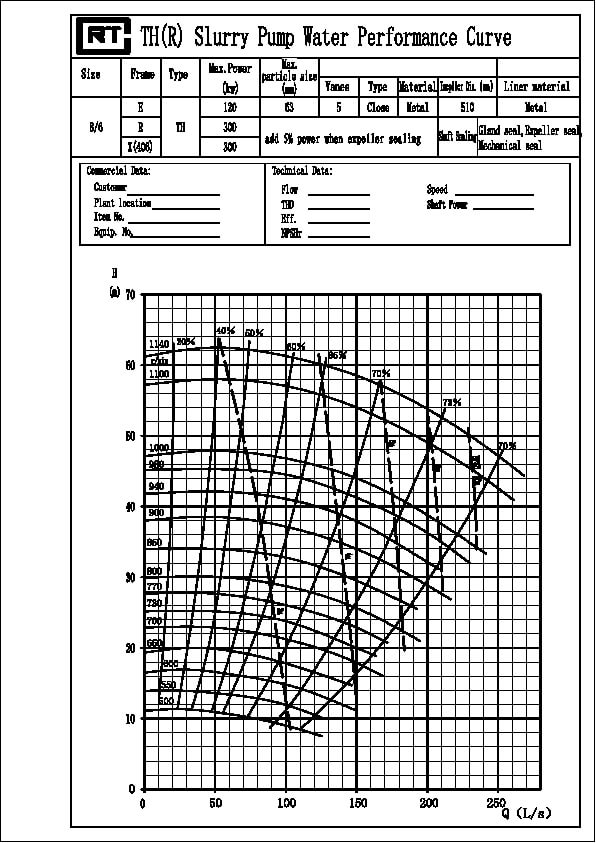

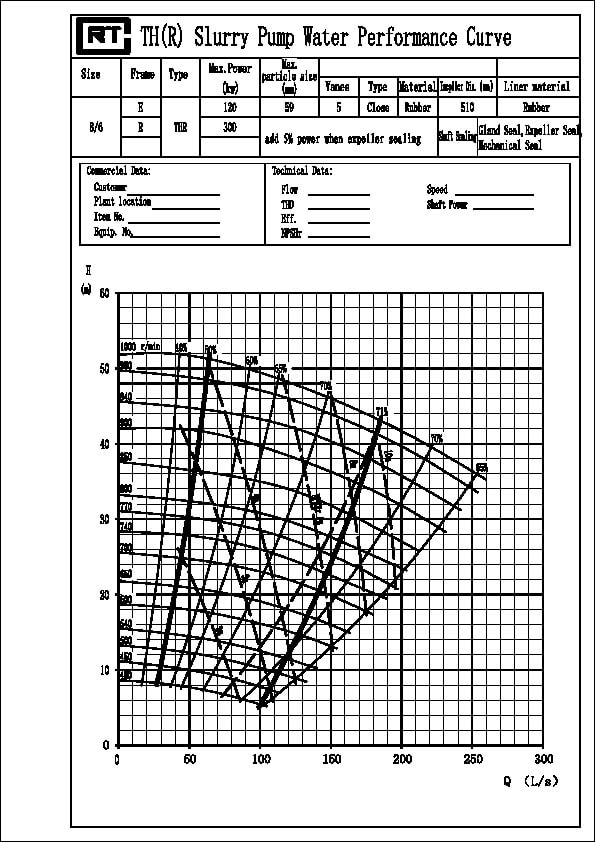

TH(R) Slurry Pump Water Performance Curve

Components

Impeller
The impeller, either elastomer, stainless steel or high-chrome material, is the main rotating component which normally has vanes to impart the centrifugal force to the liquid.
Casing
Split outer casing halves of cast contain the wear liners and provide high operation pressure capabilities. The casing shape is generally of semi-volute or concentric, efficiencies of which are less than that of the volute type.
Shaft and Bearing Assembly
A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy-duty roller bearing are housed in a removable bearing cartridge.
Shaft sleeve
A hardened, heavy-duty corrosion-resistant sleeve with O-ring seals at both ends protects the shaft. A split fit allows the sleeve removed or installed quickly.
Shaft Seal
Expeller drive seal, Packing seal, Mechanical seal.
Drive Type
V-belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

Shijiazhuang Ruite Pump Co.Ltd

Abrasion Resistant Solid Handling Centrifugal Sand Washing Slurry Pump
TH series Centrifugal Horizontal Heavy Duty Slurry Pumps are designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.

Feature

1. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
2. Anti-abrasion wet parts: The wet parts can be made of pressure molded rubber. They are completely interchangeable with metal wet parts.
3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
4. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control, etc;
5. The shaft seal uses the packing seal, expeller seal and mechanical seal;

images8

Structure

A centrifugal heavy duty alloy liner mine tailing slurry pump is mainly composed of 3 parts?

1.The anti-abrasion wet parts:(lmpeller.Throatbush. Volute liner. FPL insert) Thickened wet components for extended wear life.

2.Shaft seal parts: Sealing flexibility choice of aland. Expeller seal or mechanical seals.

3. Bearing assembly parts

Bearing assembly-Alarge diameter shaft with short overhang minimizes deflection and contributes to long bearing life.Only four through bolts are required to hold the cartridge type housing in the frame.

The removable cartridge-type bearing assembly facilitates easy on-site maintenance procedures

The Process Flow

images71

Texture Profile

images6

More Details

images12

  • Previous:
  • Next:

  • TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:

    Material Code Material Description Application Components
    A05 23%-30% Cr White Iron Impeller, liners, expeller, expeller ring, stuffing box
    A07 14%-18% Cr White Iron Impeller, liners
    A49 27%-29% Cr Low Carbon White Iron Impeller, liners
    A33 33% Cr Erosions & Corrosion Resistance White Iron Impeller, liners
    R55 Natural Rubber Impeller, liners
    R33 Natural Rubber Impeller, liners
    R26 Natural Rubber Impeller, liners
    R08 Natural Rubber Impeller, liners
    U01 Polyurethane Impeller, liners
    G01 Grey Iron Frame plate, cover plate, expeller, expeller ring, bearing house, base
    D21 Ductile Iron Frame plate, cover plate, bearing house, base
    E05 Carbon Steel Shaft
    C21 Stainless Steel, 4Cr13 Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C22 Stainless Steel, 304SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C23 Stainless Steel, 316SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    S21 Butyl Rubber Joint rings, joint seals
    S01 EPDM Rubber Joint rings, joint seals
    S10 Nitrile Joint rings, joint seals
    S31 Hypalon Impeller, liners, expeller ring, expeller, joint rings, joint seals
    S44/K S42 Neoprene Impeller, liners, Joint rings, joint seals
    S50 Viton Joint rings, joint seals



    THH SLURRY PUMP CLEAR WATER PERFORMANCE DATASHEET

    MODEL

    MAX

    MATERIAL

    CAPACITY

    HEAD

    SPEED

    MAX

    NPSH

    POWER

    LINER

    IMPELLER

    m3/h

    l/s

    H(m)

    n(r/min)

    η%

    m

    KW

    1.5/1C-THH

    30

    M

    M

    16~34

    4.5~9.5

    25~92

    1400~2200

    20

    2~5.5

    3/2D-THH

    60

    M

    M

    68~137

    19~38

    25~87

    850~1400

    47

    3~7.5

    4/3E-THH

    120

    M

    M

    126~252

    35~70

    12~97

    600~1400

    50

    2~5

    6/4S-THH

    560

    M

    M

    324~720

    90~200

    30~118

    600~1000

    64

    3~8

    6S-TH

    560

    M

    M

    468~1000

    130~280

    20~94

    500~1000

    65

    4~12

    8/6T-THH

    1200

    M

    M

    576~1152

    160~320

    32~95

    450~725

    65

    6~10
