China 6/4D-TH Slurry Pump and Spare Parts

short description:

Max. Power (kw):60
Materials:High chromium alloy or rubber
Capacity Q (m3/h):162~360
Head H (m):12~56
Speed n(rpm):800~1550
Eff. Η (%):65
NPSH(m):5~8
Impeller Vane No.:5


  • :
  • Product Detail

    Material

    Product Tags

    Description

    TH series are single-stage, single-suction, cantilever, double-shell, horizontal centrifugal slurry pumps.They are widely used in mining, metallurgy, coal washing, power plant, sewage water treatment, dredging, and chemical and petroleum industries for Conveying strong corrosive, high-concentrative slurries.Especially suitable for a variety of harsh working conditions, it is the first choice for the transportation of mine mill slurry and tailings slurry.They are mainly used for mill underflow, cyclone feeding, flotation, tailings efflux, sand removal, dredging, FGD, heavy media, ash removal, etc.

    Diameter: 25mm~450mm
    Power: 0-2000kw
    Flow rate: 0~5400㎥/h
    Head: 0~128m
    Speed: 0~3600rpm
    Material: high chrome alloy or rubber

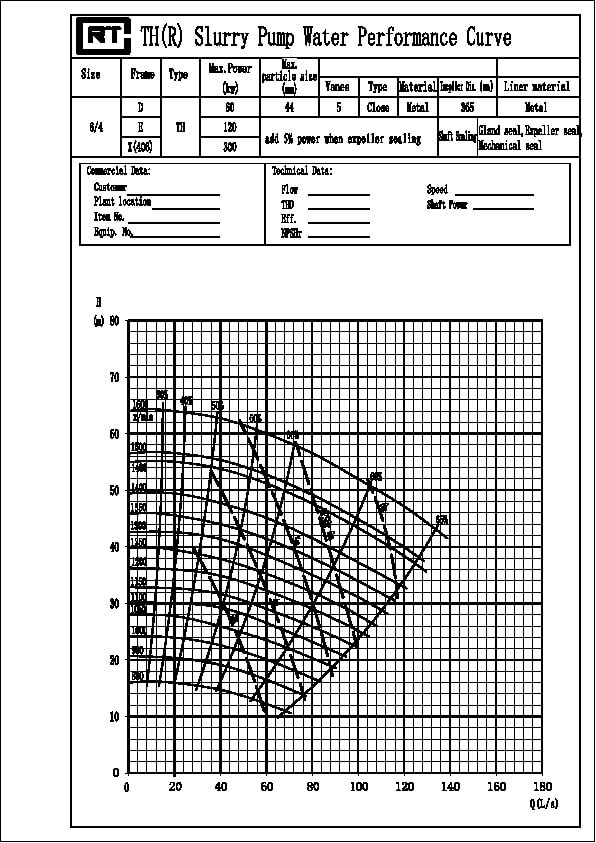

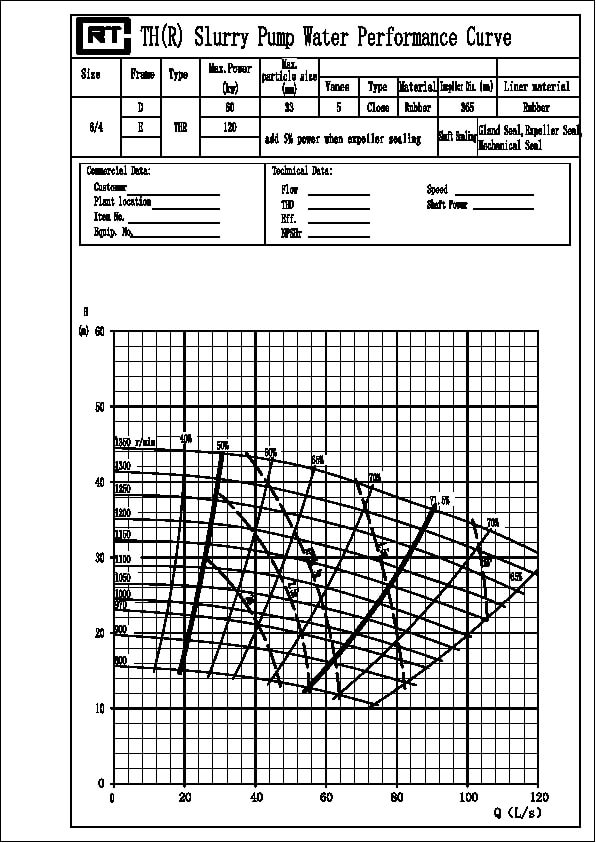

    TH(R) Slurry Pump Water Performance Curve

    Marketing Words

    1、Ruite is a leading Chinese pump manufacturer and devoted to offering professional slurry pump solutions for you. We have successfully undertaken many projects in over 40 countries. Innovative R&D department and state-of-art technology are the basis of Excellence high quality products. Scientific model selection and slurry transporting solution helps to reduce your purchase and maintenance cost. Above all, all-around services will save you a lot of effort and it will be a enjoyable experience.
    2、Ruite production line includes four major procedures strictly supervised by our quality control personnel, including foundry, machining, assembling and testing.

    Shijiazhuang Ruite Pump Co.Ltd

    Abrasion Resistant Solid Handling Centrifugal Sand Washing Slurry Pump
    TH series Centrifugal Horizontal Heavy Duty Slurry Pumps are designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.

    Feature

    1. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
    2. Anti-abrasion wet parts: The wet parts can be made of pressure molded rubber. They are completely interchangeable with metal wet parts.
    3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
    4. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control, etc;
    5. The shaft seal uses the packing seal, expeller seal and mechanical seal;

    images8

    About RT

    RT Slurry Pumps are designed for handling highly abrasive,high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.

    At present, Ruite has the new material MC01, MC01 spares part service life is 1.5-2 times than A05 material.

    Our production ability 1200ton per month,The largest wear-resistant casting weighs can up to 12 ton. Welcome to visit.thank you

    The Process Flow

    images71

    Texture Profile

    images6

    More Details

    images12

  • Previous:
  • Next:

  • TH Cantilevered, Horizontal, Centrifugal Slurry Pump  Material:

    Material Code Material Description Application Components
    A05 23%-30% Cr White Iron Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert
    A07 14%-18% Cr White Iron Impeller, liners
    A49 27%-29% Cr Low Carbon White Iron Impeller, liners
    A33 33% Cr Erosions & Corrosion Resistance White Iron Impeller, liners
    R55 Natural Rubber Impeller, liners
    R33 Natural Rubber Impeller, liners
    R26 Natural Rubber Impeller, liners
    R08 Natural Rubber Impeller, liners
    U01 Polyurethane Impeller, liners
    G01 Grey Iron Frame plate, cover plate, expeller, expeller ring, bearing house, base
    D21 Ductile Iron Frame plate, cover plate, bearing house, base
    E05 Carbon Steel Shaft
    C21 Stainless Steel, 4Cr13 Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C22 Stainless Steel, 304SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    C23 Stainless Steel, 316SS Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt
    S21 Butyl Rubber Joint rings, joint seals
    S01 EPDM Rubber Joint rings, joint seals
    S10 Nitrile Joint rings, joint seals
    S31 Hypalon Impeller, liners, expeller ring, expeller, joint rings, joint seals
    S44/K S42 Neoprene Impeller, liners, Joint rings, joint seals
    S50 Viton Joint rings, joint seals
