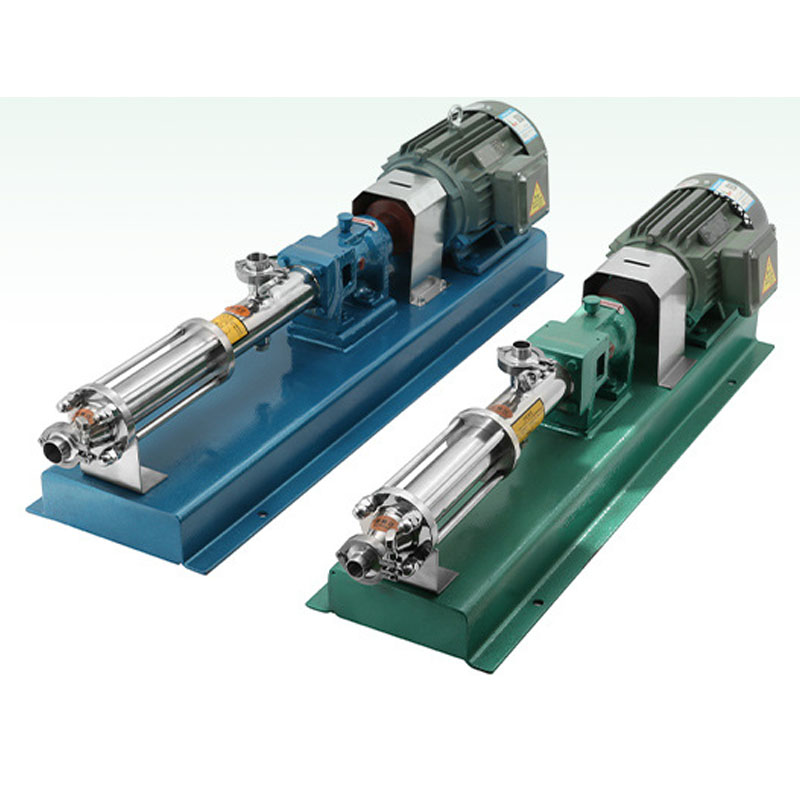

G Type Mono Screw 304SS Mud Progressive Cavity Pump
G Type Mono Screw 304SS Mud Progressive Cavity Pump Introduction:
Screw pump also known as a progressive cavity pump or a single screw pump, is a type of positive displacement pump that operates using the principle of a rotating screw inside a stator. Here's a breakdown of the working process of a screw mono pump:

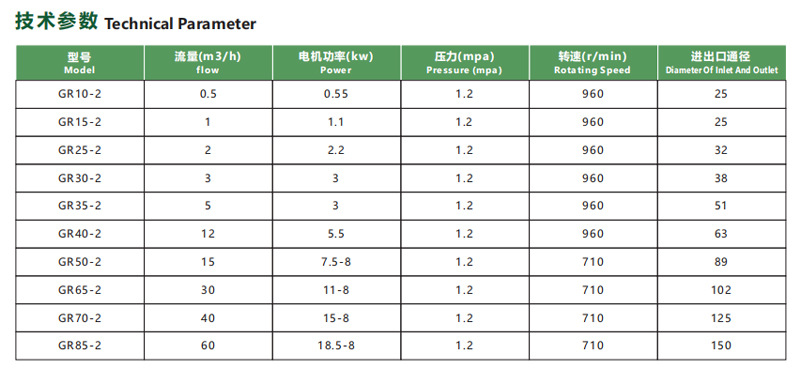

G Type Mono Screw 304SS Mud Progressive Cavity Pump Performance Range:
Flow: 3 - 40 m3/h
Delivery Head:0-125 m
Max power: 18.5KW
Pump Material: stainless steel
Liquid Temperature: ≤ 80 ℃
G Type Mono Screw 304SS Mud Progressive Cavity Pump Applications:
Automotive Industry, Biofuel Industry, Developing World Water Solutions, Food and Beverage Industry, Industrial Utilities, Mining industry, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions, Other
To choose the right screw pump or cavity pump, please contact us. Our technical people will choose the right pump for you.
If you need other types pump, please tell us your detail requirements, our technical people will choose the right pump for you.
Email: rita@ruitepump.com
Whatsapp/wechat: +8619933139867
TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:
| Material Code | Material Description | Application Components |
| A05 | 23%-30% Cr White Iron | Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert |
| A07 | 14%-18% Cr White Iron | Impeller, liners |
| A49 | 27%-29% Cr Low Carbon White Iron | Impeller, liners |
| A33 | 33% Cr Erosions & Corrosion Resistance White Iron | Impeller, liners |
| R55 | Natural Rubber | Impeller, liners |
| R33 | Natural Rubber | Impeller, liners |
| R26 | Natural Rubber | Impeller, liners |
| R08 | Natural Rubber | Impeller, liners |
| U01 | Polyurethane | Impeller, liners |
| G01 | Grey Iron | Frame plate, cover plate, expeller, expeller ring, bearing house, base |
| D21 | Ductile Iron | Frame plate, cover plate, bearing house, base |
| E05 | Carbon Steel | Shaft |
| C21 | Stainless Steel, 4Cr13 | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C22 | Stainless Steel, 304SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C23 | Stainless Steel, 316SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| S21 | Butyl Rubber | Joint rings, joint seals |
| S01 | EPDM Rubber | Joint rings, joint seals |
| S10 | Nitrile | Joint rings, joint seals |
| S31 | Hypalon | Impeller, liners, expeller ring, expeller, joint rings, joint seals |
| S44/K S42 | Neoprene | Impeller, liners, Joint rings, joint seals |
| S50 | Viton | Joint rings, joint seals |
