IHF Fluorine Plastic Lining Centrifugal Chemical Pump (Teflon Lined Pump) Introduction:

IHF fluorine plastic lining centrifugal pump is a single stage single suction fluorine plastic alloy chemical centrifugal pump, the pump body is lined with fluoroethylene propylene (F46), impeller and pump cover are made of metal insert outer fluorine plastic integral sintering pressing molding, shaft seal adopts outer bellow mechanical seal, static ring choose 99.9% alumina ceramics or silicon carbide, The moving ring is filled with tetrafluoro material or silicon carbide. It is designed and produced according to international design and processing technology of non-metal pump. IHF fluorine plastic lined centrifugal chemical pump has wear resistance, corrosion resistance, high-temperature resistance, no aging, high mechanical strength, no toxin decomposition and other points.

 IHF Fluorine Plastic Lining Centrifugal Chemical Pump (Teflon Lined Pump) Performance Range:

Flow: 3 - 130 m3/h
Delivery Head: 5-87 m
Size.: DN32-DN100 mm
Pump Material: Metal Casing With Teflon Lining
Suitable Medium: Sulfuric acid, hydrochloric acid, nitric acid, acetic acid, hydrofluoric acid, aqua regia, strong alkali, strong oxidant, organic solvent
Liquid Temperature: ≤ 80 ℃

 IHF Fluorine Plastic Lining Centrifugal Chemical Pump (Teflon Lined Pump) Applications:

Widely used in chemical, pharmaceutical, petroleum, metallurgy, electric power, electroplating, pickling, pesticides, papermaking and other industries in the liquid transport, wastewater treatment and acid and other processes.

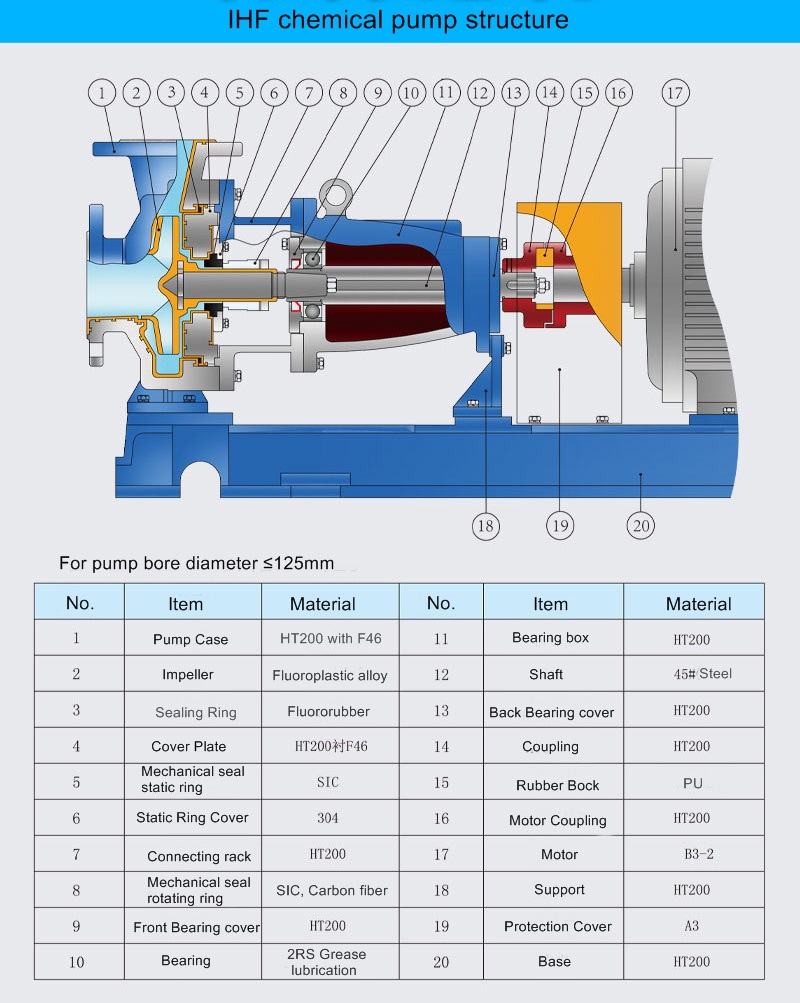

 IHF Fluorine Plastic Lining Centrifugal Chemical Pump Structure
