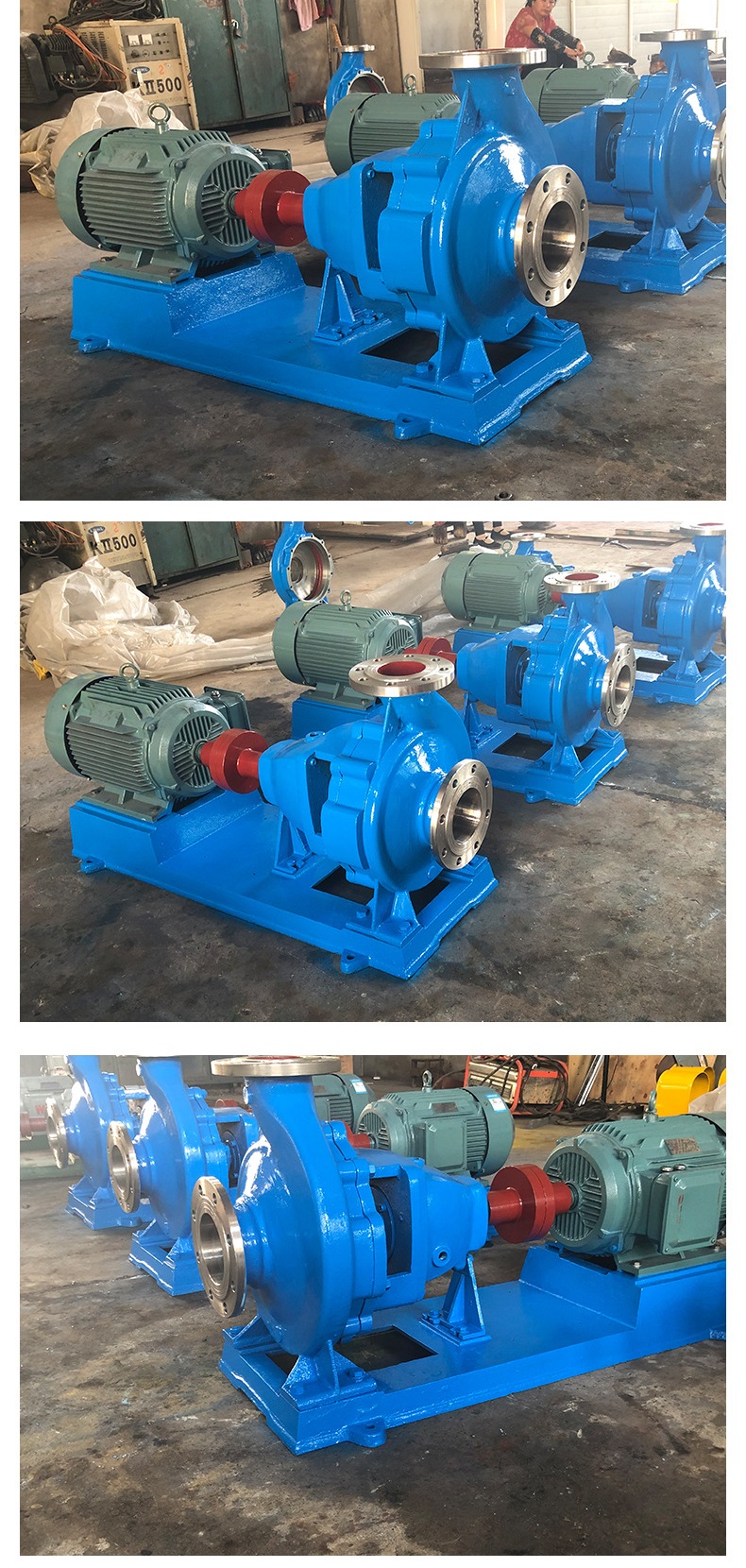

IH horizontal stainless stee corrosion resistant acid and alkali resistant centrifugal chemical pump
IH Horizontal Stainless Stee Corrosion Resistant Acid And Alkali Resistant Centrifugal Chemical Pump
IH pump single-stage and single-suction corrosion-resisting centrifugal pump, which pumps corrosive liquid without solid particle and glueness similar to water. The temperature of medium is -20 ℃ to 105 ℃, if necessary, cooling measure can be taken to reach a higher temperature. the pumps applies to petroleum, chemical, metalurgical power, paper making, foodstuff, pharmaceutical and synthetic fiber industry etc.
Range of properties
Capacity: 0.3-400m3/h
Head: 5-125m
Speed: 2900r/min, 1450r/min
Power: 0.55-90kw
Inlet diameter: 32-200mm
Max pressure: 1.6MPa

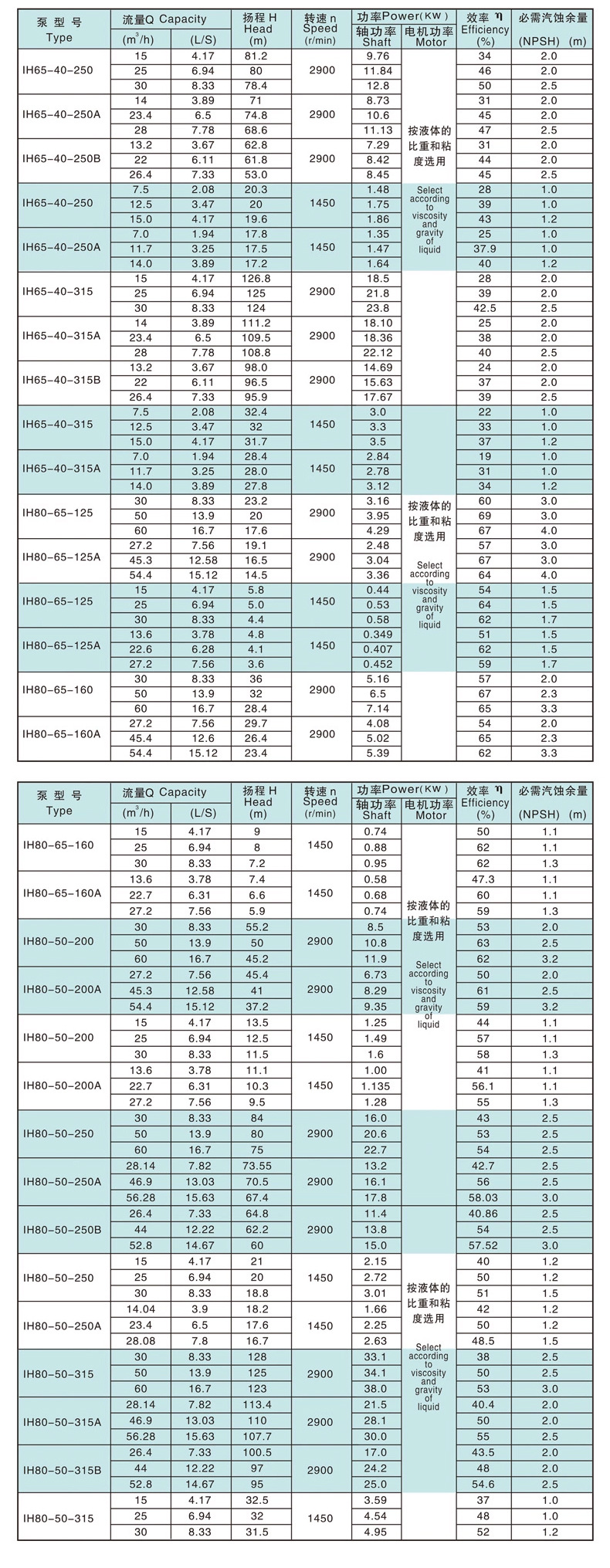

These are just part of IH series chemical pump data sheet.
If you need other types pump, please tell us your detail requirements, our technical people will choose the right pump for you.
Email: rita@ruitepump.com
Whatsapp/wechat: +8619933139867
TH Cantilevered, Horizontal, Centrifugal Slurry Pump Material:
| Material Code | Material Description | Application Components |
| A05 | 23%-30% Cr White Iron | Impeller, liners, expeller, expeller ring, stuffing box, throatbush, frame plate liner insert |
| A07 | 14%-18% Cr White Iron | Impeller, liners |
| A49 | 27%-29% Cr Low Carbon White Iron | Impeller, liners |
| A33 | 33% Cr Erosions & Corrosion Resistance White Iron | Impeller, liners |
| R55 | Natural Rubber | Impeller, liners |
| R33 | Natural Rubber | Impeller, liners |
| R26 | Natural Rubber | Impeller, liners |
| R08 | Natural Rubber | Impeller, liners |
| U01 | Polyurethane | Impeller, liners |
| G01 | Grey Iron | Frame plate, cover plate, expeller, expeller ring, bearing house, base |
| D21 | Ductile Iron | Frame plate, cover plate, bearing house, base |
| E05 | Carbon Steel | Shaft |
| C21 | Stainless Steel, 4Cr13 | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C22 | Stainless Steel, 304SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| C23 | Stainless Steel, 316SS | Shaft sleeve, lantern ring, lantern restrictor, neck ring, gland bolt |
| S21 | Butyl Rubber | Joint rings, joint seals |
| S01 | EPDM Rubber | Joint rings, joint seals |
| S10 | Nitrile | Joint rings, joint seals |
| S31 | Hypalon | Impeller, liners, expeller ring, expeller, joint rings, joint seals |
| S44/K S42 | Neoprene | Impeller, liners, Joint rings, joint seals |
| S50 | Viton | Joint rings, joint seals |
